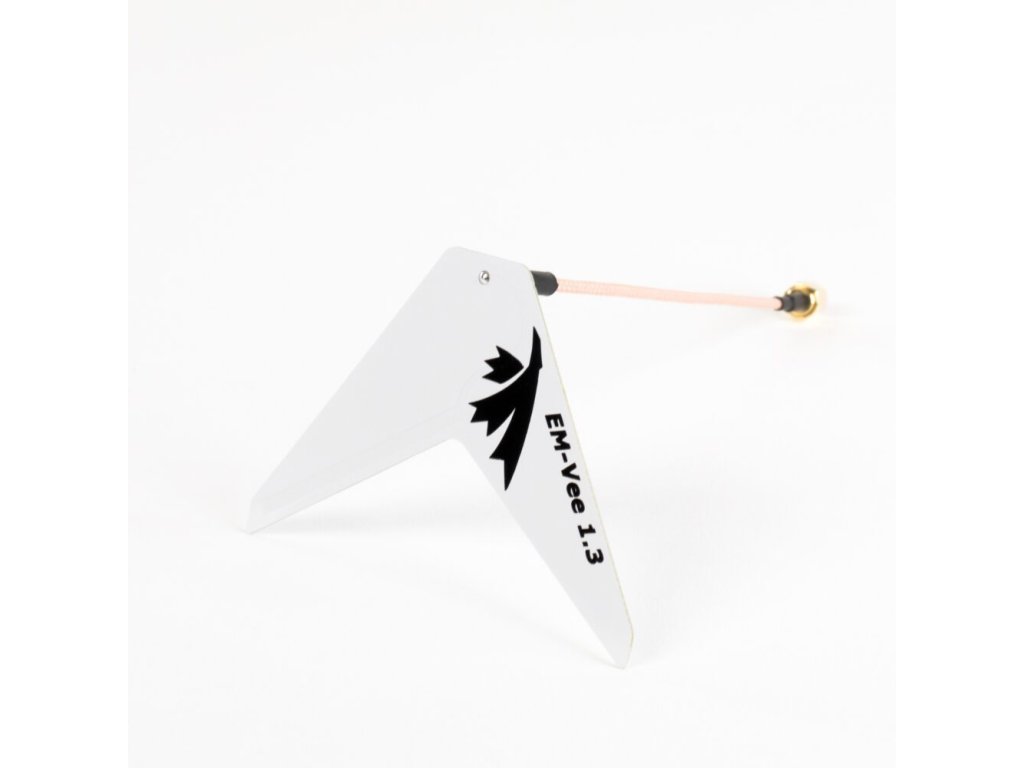

TrueRC EM-VEE 1.3
TrueRC EM-VEE 1.3 Antenna – High Performance FPV Antenna for 1.3 GHz
Maximize your FPV setup's signal quality and range with the TrueRC EM-VEE 1.3 antenna. Designed for top performance in the 1240-1360 MHz frequency band, it ensures stable long-distance transmission and a strong signal for any drone setup. Thanks to its unique V-shape, the TrueRC EM-VEE 1.3 offers highly efficient radiation, minimizing the nulls and dead spots often seen in regular antennas.
The TrueRC EM-VEE 1.3 is more than just an antenna – it’s a tool to guarantee reliable, clear transmission, whether you're racing or flying long-distance FPV. The V-shape design allows for a wider radiation angle and reduces nulls, especially towards the bottom, giving you more consistent signal coverage.
If you want to stay connected with your drone, even during long and challenging flights, the TrueRC EM-VEE 1.3 antenna is the right choice.
Key Benefits:
- High Performance: 1.7 dBi gain for a strong and stable signal in the 1240–1360 MHz frequency range.
- V-shape for better radiation: Reduced null zones for reliable transmission even when the antenna's position changes.
- SMA Connector: Universally compatible for a wide range of devices.
- Compact & Lightweight: 86mm x 61mm dimensions and only 0.010 kg in weight, perfect for FPV setups where every gram counts.
- 150mm Cable: Ideal cable length for easy integration into your system.
Specifications:
- Model: TrueRC EM-VEE 1.3
- Frequency Range: 1240–1360 MHz
- Gain: 1.7 dBi
- Connector: SMA
- Dimensions: 86mm x 61mm (150mm cable)
- Weight: 0.010 kg
- Packaging Dimensions: 20 x 12.5 x 8 cm
Specifications:
TrueRC EM-VEE 1.3
| Model | TrueRC EM-VEE 1.3 |
| Frequencies | 1240-1360MHz |
| Gain | 1.7dBi |
| Connector | SMA |
| Dimensions | 86mm x 61mm (150mm cable) |
| Weight | 0.010 kg |
| Dimensions | 20 x 12.5 x 8cm |
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.01 kg |
