TBS CROSSFIRE DIVERSITY NANO RX (SE)- FPV LONG RANGE DRONE RECEIVER

tbs-crossfire-diversity-nano-quickstart

TBS_Avionics_Limited_QOS_RXNANODIV_HK_TUV_FCC_Grant

example_051

Whether you're flying long distances or navigating through interference-heavy areas, this receiver will provide unparalleled stability.

Key Benefits:

• Exceptional range and reliability: Experience limitless flying with flawless signal reception, even at extreme distances.
• True Diversity: Dual-input diversity and chip-based design ensure the clearest and most stable signal, with superior noise rejection.
• Beacon Mode for emergencies: Lost your drone? The TBS Crossfire comes with a beacon mode that helps you locate your drone using GPS coordinates and RF signals.
• Ultra-compact design: Weighing only 1.8g, this receiver fits perfectly on any drone without compromising on performance.
• Easy setup and flexibility: Supports 8 channel outputs (PPM, SBUS, CRSF) and is compatible with a wide range of systems.

Features:

• True Diversity with dual-input stage and chip-based diversity for best reception
• Beacon mode for locating a lost drone
• Compact dimensions: 24mm x 18mm
• Weight: 1.8g (receiver only)
• Power input: 3.3V to 8.4V
• Supports up to 8 channels (PPM, SBUS, CRSF)
• Antennas: 2x TBS Crossfire Micro Receiver Antenna
• Required firmware: V2.87
• Included accessories: 1x TBS Crossfire Diversity Nano Receiver, 2x antennas, 1x spare shrink tube, 14x 30awg silicon connection wires

The TBS Crossfire Diversity Nano RX (SE) is the perfect companion for your FPV system, delivering maximum range, reliability, and security for every flight.

Yet again TBS is redefining long range flying! With the TBS Crossfire Diversity Nano RX we have taken the most powerful Crossfire receiver. Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!)
TRUE DIVERSITY, FULL RANGE

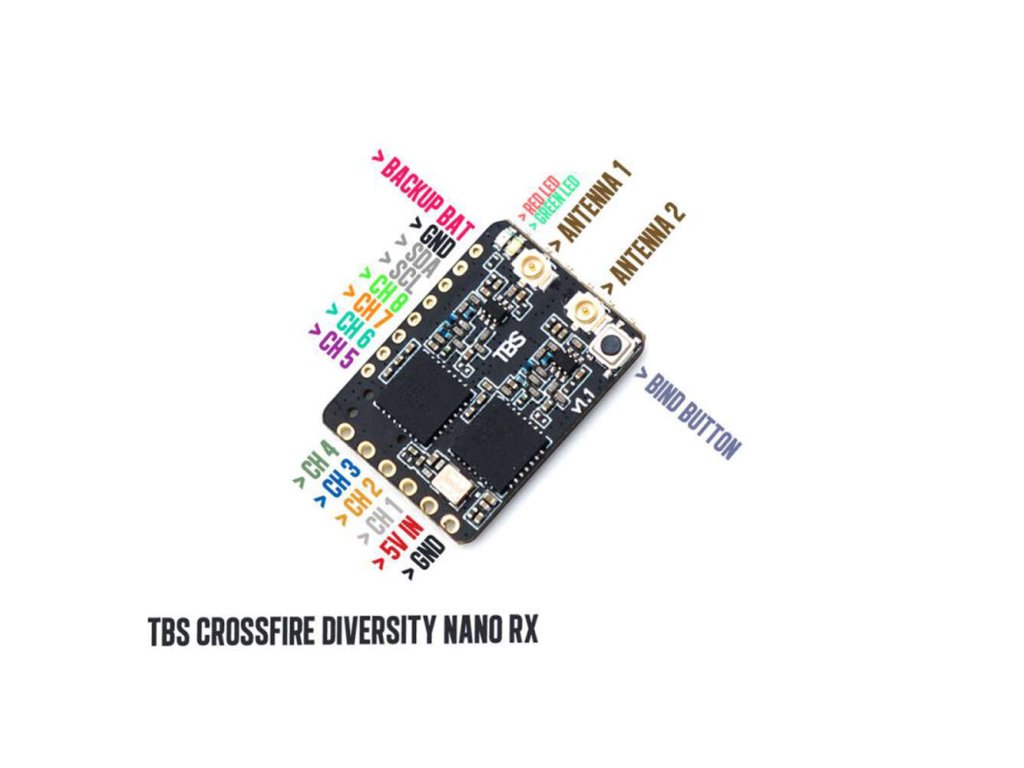

The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.

BEACON MODE

Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port (1s). It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane. The backup battery (1s) will also be charged as soon as you apply power to the rig.

SPECIFICATIONS

Weight - 1.8g (receiver only)
Size - 24mm x 18mm
Requires - Firmware V2.87
Input Power - +3.3V to 8.4V

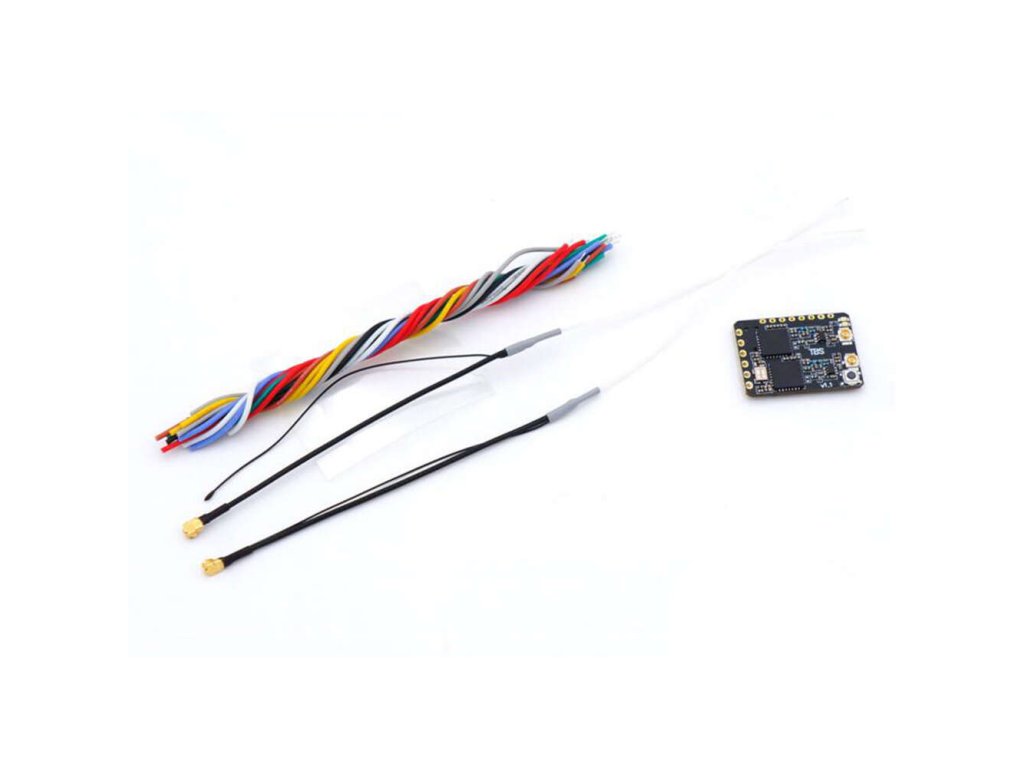

INCLUDES

1x TBS Crossfire Diversity Nano Receiver
2x TBS Crossfire Micro Receiver Antenna
1x Spare shrink tube
14x 30awg silicon connection wires
