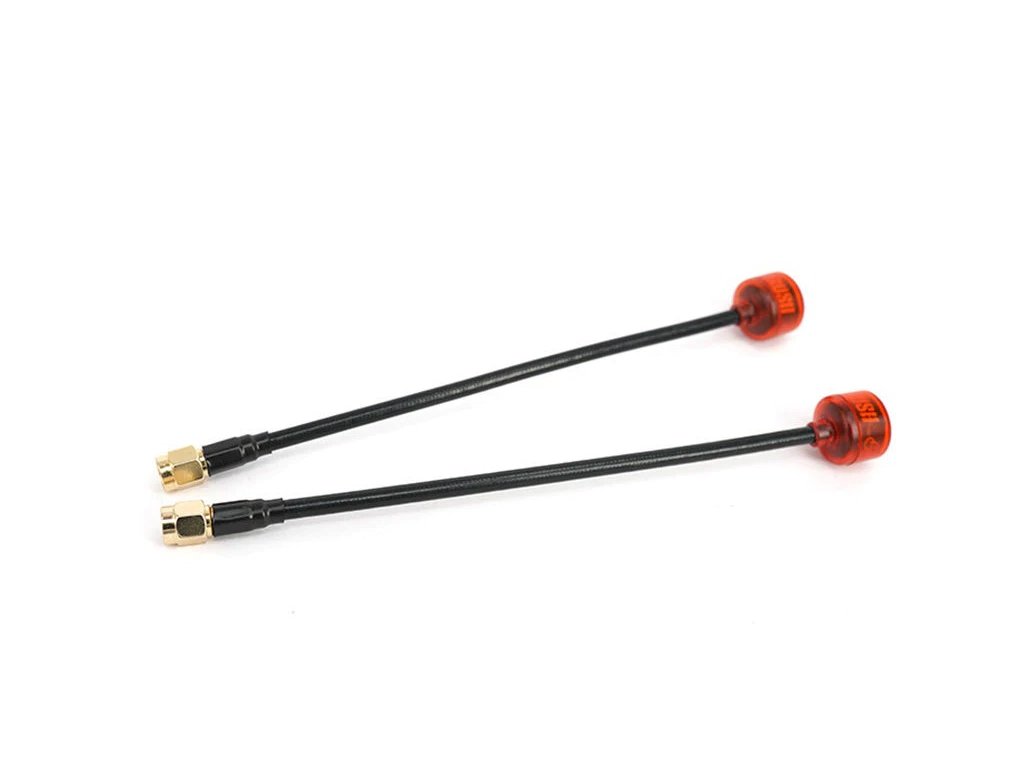

RUSHFPV CHERRY ANTENNA SMA
RUSHFPV CHERRY ANTENNA SMA
POLARIZATION RHSP
LENGTH UTRA Extended
Total Length: 160 mm

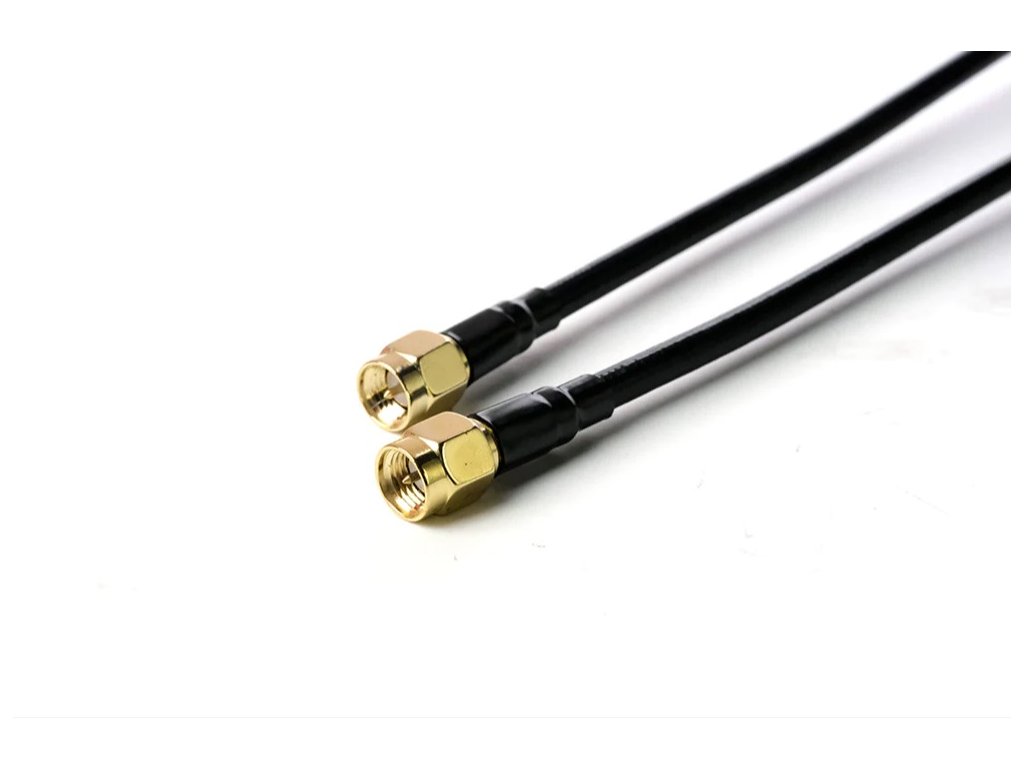

Cable length:145mm
Garance doručení
nepoškozeného zboží
Specifications:
RUSHFPV CHERRY ANTENNA SMA
| Model | RUSHFPV CHERRY ANTENNA SMA |
| Material | PC + ABS |
| Weight | 10g |
| Antenna length | 105mm |
| Center frequency | 5.8 GHz |
| Gain | 1.2 Dbi |
| Bandwidth | 400 MHz (5.6-6.0 GHz) |
| Compliance | VSWR 1.4max-1.1min (at center frequency) |
| Axial ratio | about 1.0 |
| Center frequency | 5800 MHz |
| Efficiency | 98% |
| Polarization | RHCP, LHCP |
| Color | red |
| Connector | SMA |
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Weight: | 0.01 kg |
