Multi-Rotor Pusher Prop 10X4.5R(CW)

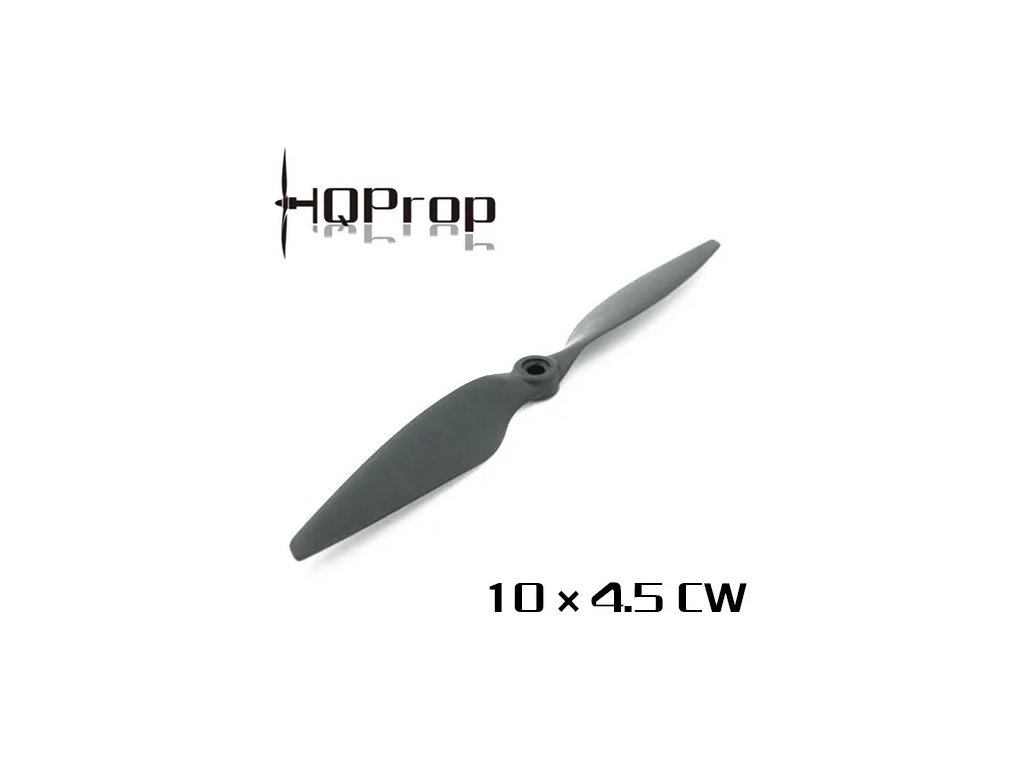

Pusher Drone Propeller 10x4.5R (CW) – Fiberglass, 2-Blade for Reverse Thrust
Elevate your drone's performance with this high-quality fiberglass propeller designed for pusher drones. With a 10-inch diameter and a 4.5 pitch, it delivers powerful thrust for stable, fast, and efficient flights. Engineered for durability, this propeller ensures your drone stays airborne longer while offering superior aerodynamics that optimize energy usage.
Perfectly suited for reverse thrust configurations, this two-blade propeller reduces drag and maximizes performance. Weighing just 11.59g, it combines lightweight precision with robust strength, ensuring smooth and reliable flights even in demanding conditions.
Key Benefits:
- Optimized performance for pusher drone configurations with reverse thrust.
- High durability thanks to fiberglass construction, ensuring long-term reliability.
- Enhanced aerodynamics for efficient flight and lower energy consumption.
- Lightweight design (11.59g) provides maximum stability without adding excess weight.
- Easy installation with included adapters for different shaft sizes.
Specifications:
- Propeller Diameter: 10 inches
- Pitch: 4.5
- Blades: 2
- Material: Fiberglass
- Weight: 11.59g
- Hub Diameter: 16mm
- Hub Thickness: 9mm
- Shaft: 9.5/8/6mm
- Adapter Rings: 6/5/4/3mm
- Includes: 1 x Pusher Drone Propeller 10x4.5R (CW)
Specifications:
| Product Name | Multi-Rotor Prop 10X4.5R(CW) |
| Propeller Diameter | 10 inch |
| Pitch | 4.5 |
| Blades | 2 |
| Material | Glassfiber |
| Weight | 11.59g |
| Hub Diameter | 16mm |
| Hub Thickness | 9mm |
| Shaft | 9.5/8/6mm |
| Adaptor Rings | 6/5/4/3 |
Includes
1 x Multi-Rotor Pusher Prop 10X4.5R(CW)
Additional parameters
| Category: | Prepellers |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.012 kg |
Be the first who will post an article to this item!
HQProp Co.,Ltd. is a comprehensive Propeller enterprise for RC Hobby which integrates R&D, design, production and marketing as a whole. In 2012 HQProp Team was founded in China, means High Quality Prop. It is one of the most professional propeller manufacturers in China and desire to become a highest quality RC propeller manufacturer.
HQ prop are designed to give you maximum control and responsiveness up at speed. Anoptimized design method was developed to design these propellers. For a given operative condition (thrust, rotation speed, blade number, propeller diameter, hub radius) and profile distribution along the blade, the present methodcan determine the chord and angle distribution of the blade, together with its torque and thrust of the maximum efficiency propeller. the energy loss of maximum efficiency propeller is minimum. If all the profile along the blade operates at the maximum efficiency (maximum lift to drag ratio), the propeller efficiency is maximum. The optimized design methodgives us an optimized blade geometry that is then modeled.
A CFD method called MRF model method is used to analyzed the thrust and torque of propeller. The MRF model method is a steady state approximation. The fluid in the blade region is modeled as a rotating frame and the surrounding fluid is modeled in a stationary frame. The MRF model includes the geometry of the rotor blades. MRF method allows individual zones to rotate or translate. This is realized by dividingthe problem domain into separate zones where the flow is solved in stationary or rotating coordinate systems. When the air flow is uniform, this method is very accurate
