Introducing the ultimate all-around cell in the 21700 form factor size - the pinnacle of power and performance. Boasting a minimum capacity of 4,000 mAh and a typical capacity of 4,200 mAh, along with an astounding 45 Amp Maximum Continuous Discharge Rating, this cell stands tall above the rest. While continuous use at the maximum discharge rate may reduce its overall lifespan, this cell can handle the demand with ease. When examined on a discharge with capacity graph, this cell hits harder and lasts longer than any other. It delivers an unbeatable combination of high capacity and insane discharge/drain ability, making it the clear choice for any device requiring the 21700 form factor size. With this miraculous cell, your devices will finally be able to reach their true potential.
| Product Name |

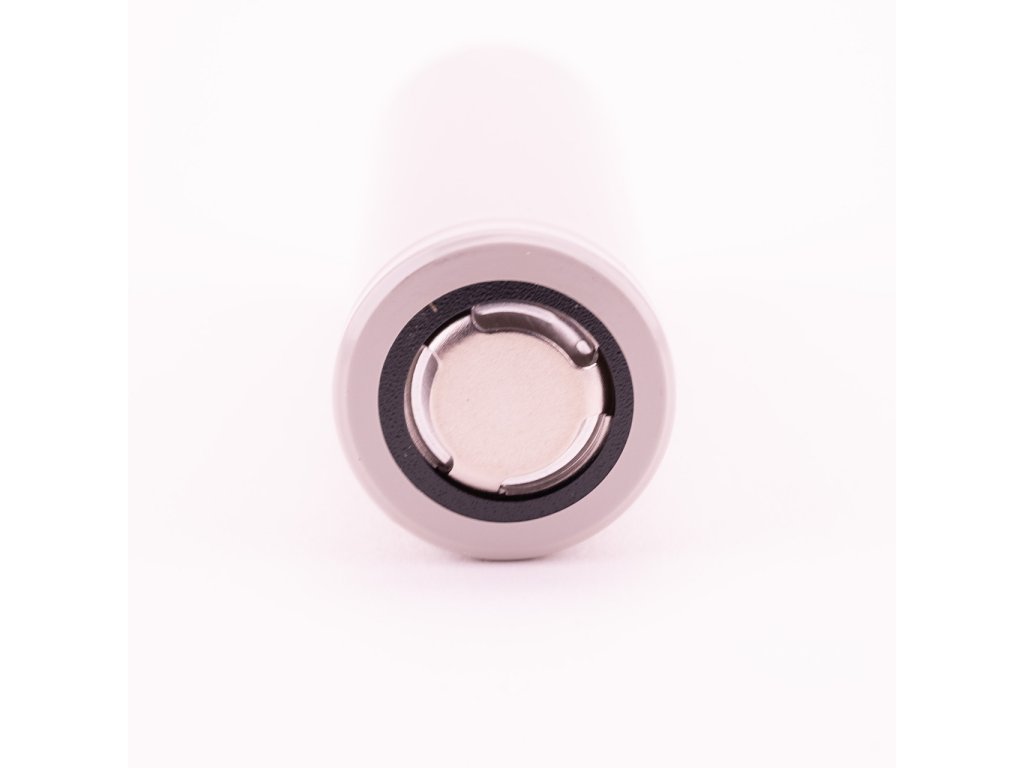

Molicel P42A 21700 4200mAh 45A Battery |
| BATTERY TYPE |
| Flat TopNOMINAL VOLTAGE |
3.6 |
| DISCHARGE CURRENT (AMPS) |
456 |
| NOMINAL CAPACITY (MAH) |
4,200 |
| SPECIFICATIONS |
| Manufacturer |
Molicel |
| Model |
INR-21700-P42A (P42A) |
| Size |
21700 |
| Style |
Flat Top |
| Nominal Capacity |
4200mAh |
| Discharge Current |
45A Maximum Continuous |
| Nominal Voltage |
3.6V |
| Maximum Voltage |
4.2V |
| Cutoff Voltage |
2.5V |
| Approximate Dimensions |
21.7mm x 70.2mm |
| Approximate Weight |
67g |
| Origin |
Taiwan |
| Specification Datasheet |
Molicel INR21700P42A Datasheet |
| Protected |
NO, UNPROTECTED. This cell is unprotected and intended for use in protected battery packs only and NOT individually or as a standalone product. In order to operate safely it must have additional protection in the form of a PCB (protection circuit board) or BMS (battery management system), which is not included. |
You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries.
WARNING:
Use caution as misusing or mishandling the battery may cause a FIRE or EXPLOSION which may result in personal injury, property damage, or death. The user must have an appropriate understanding of the potential dangers of LITHIUM ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an E-CIGARETTE, VAPORIZER, or similar device and MUST NOT be used with such devices due to RISK OF FIRE or EXPLOSION. If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL customers for their reference and safety!
DO NOT USE WITH E-CIGARETTE, VAPORIZER, OR SIMILAR DEVICEAdditional battery manufacturer and battery industry association warnings for using lithium-ion batteries in e-cigarette or vaping devices can be viewed here: Be-CigaretteSafe.org
- BATTERY IS ONLY FOR USE IN PROTECTED BATTERY PACKS
- ONLY ASSEMBLE A BATTERY PACK IF YOU ARE COMPETENT IN DOING SO
- DO NOT STORE BATTERY/CELL LOOSE OR IN A POCKET, PURSE, ETC. ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT
- WHEN NOT IN USE, ALWAYS STORE LITHIUM ION BATTERIES IN THE PROTECTIVE CASE/BOX IN WHICH BATTERIES WERE DELIVERED
- Misusing or mishandling lithium ion batteries can pose a SERIOUS RISK of PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- Usage of batteries is AT YOUR OWN RISK!
- ONLY use with proper protection circuitry
- DO NOT short circuit intentionally or unintentionally
- KEEP AWAY from metal/conductive objects to prevent short circuiting
- DO NOT use if PVC wrapper or terminal insulator is damaged or torn
- DO NOT use if battery is damaged in any way
- DO NOT over-charge or charge above the maximum voltage rating
- DO NOT over-discharge or exceed the continuous discharge rating
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- DO NOT solder onto battery, spot weld only
- DO NOT use force to install or install in reverse/backwards
- ONLY use within manufacturer’s specification
- KEEP AWAY from pets and children
- ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
- ONLY use a smart charger designed for this specific type of battery
- DO NOT mix and match brands and models, old and new, used and unused batteries
- STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any wayIt is your responsibility to determine that your charger or device is functioning properlyIf exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
- DO NOT throw away in trash; contact your local jurisdiction for proper recycling or disposalResellers MUST forward ALL warnings to ALL customers for their reference and safety
