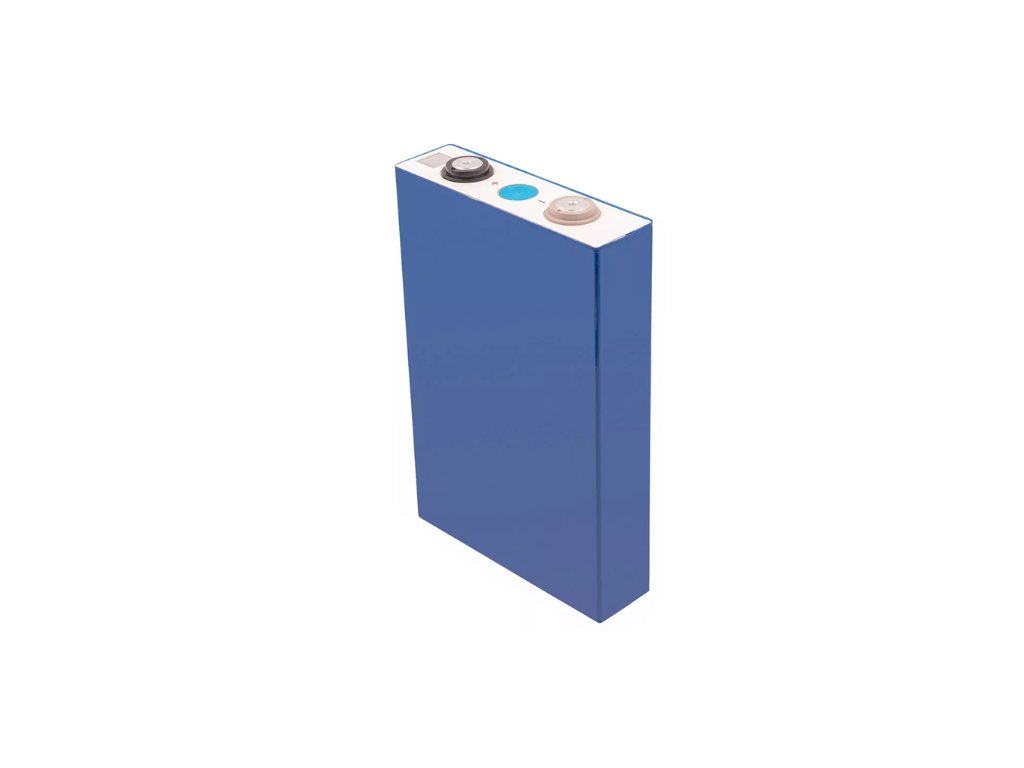

LF100LA LiFePO4 Battery LF100LA, 3.2V, 102Ah

The LF100LA is a prismatic lithium iron phosphate (LiFePO4) battery cell with a nominal voltage of 3.2V and a capacity of 102Ah. Its exceptional properties make it ideal for a wide range of applications, including home energy storage, solar systems, and backup power supplies.

Key Features:

• High Capacity and Energy Efficiency: Offers a capacity of 102Ah and energy efficiency of ≥93%, ensuring long-term and stable performance.

• Long Lifespan: Designed for over 5,000 charge cycles under standard conditions, guaranteeing long-term reliability.

• Safety and Stability: LiFePO4 technology provides excellent thermal and chemical stability, minimizing the risk of overheating or fire.

• Compact and Lightweight Design: With dimensions of 118.5 × 160 × 50.1 mm and a weight of approximately 1.98 kg, this battery is easily integrable into various systems.

• M6 Threaded Holes and Busbars: Allows for easy and secure connection with other batteries or devices.

Technical Specifications:

• Nominal Voltage: 3.2V

• Capacity: 102Ah

• Energy: 326.4Wh

• Internal Resistance: ≤0.5 mΩ

• Dimensions: 118.5 × 160 × 50.1 mm

• Weight: 1.98 kg

• Maximum Charging Voltage: 3.65V

• Minimum Discharging Voltage: 2.5V

• Standard Charging/Discharging Current: 0.2C

• Maximum Charging/Discharging Current: 1C

• Operating Temperature for Charging: 0–65°C

• Operating Temperature for Discharging: -20–65°C

Applications:

• Home Energy Storage: Ideal for residential energy storage systems requiring reliable and long-term performance.

• Solar and Wind Energy Systems: Perfect for storing energy from renewable sources due to its high cycle life and energy efficiency.

• Uninterruptible Power Supplies (UPS): Provides a reliable power source in case of power outages.

• Electric Vehicles and Boats: Suitable for use in electric cars, golf carts, electric wheelchairs, and boats due to its high energy density and safety.

The LF100LA LiFePO4 battery is an excellent choice for those seeking a reliable, safe, and long-lasting power source for various applications. Its technical parameters and advantages make it ideal for integration into modern energy systems.
