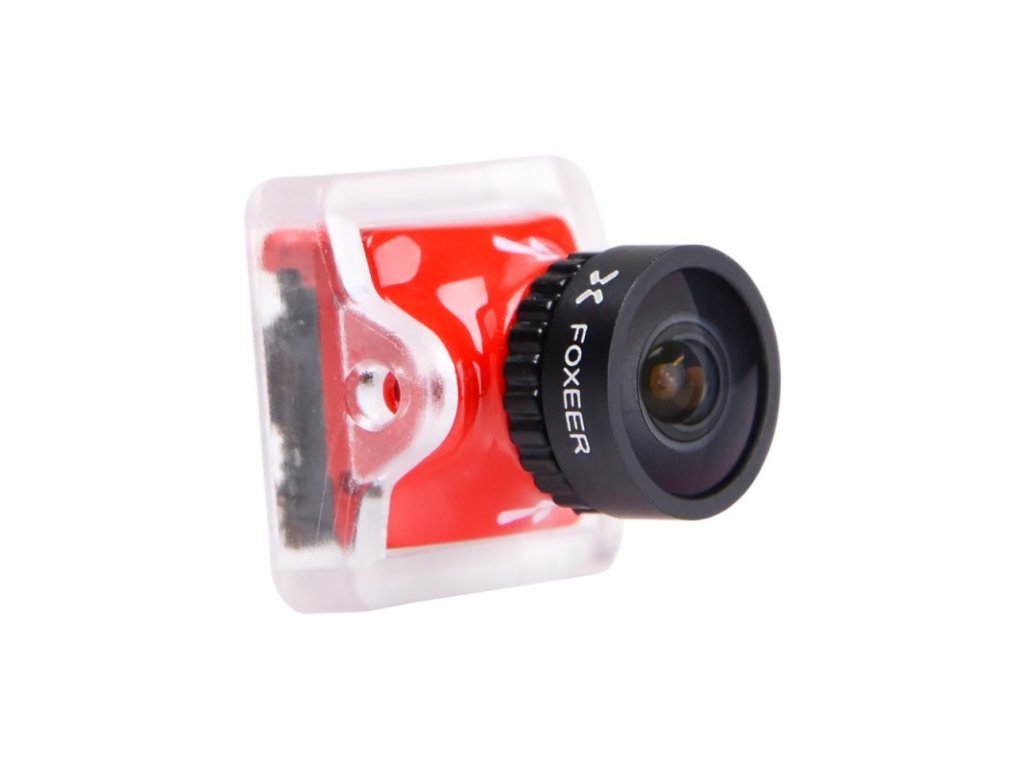

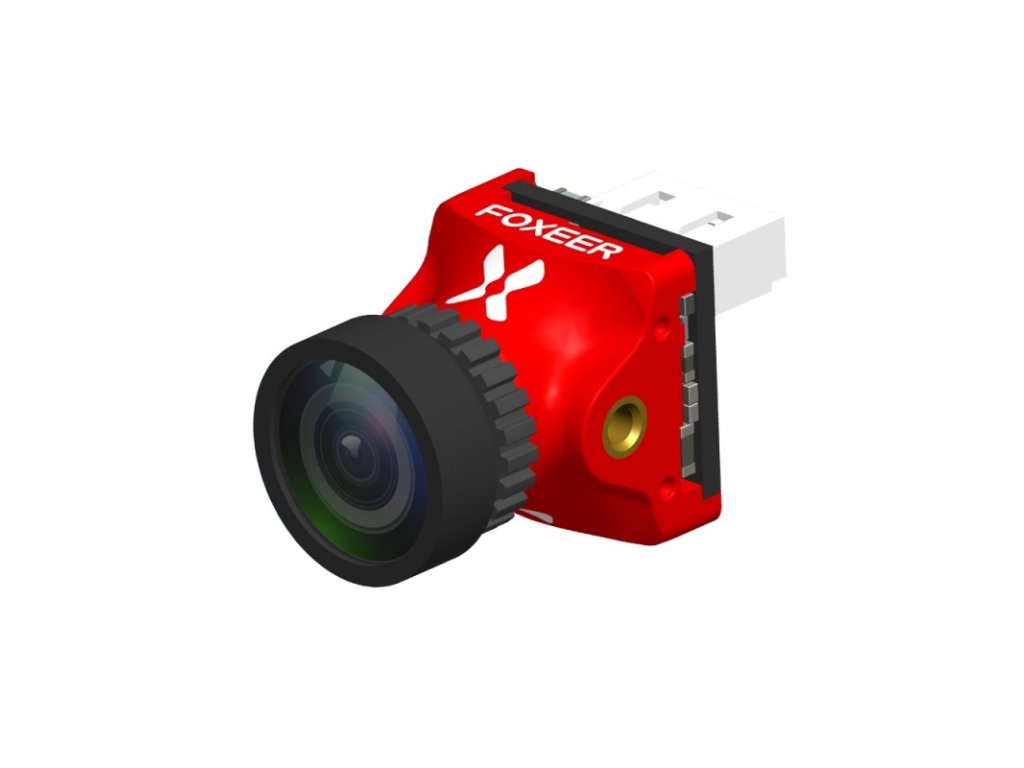

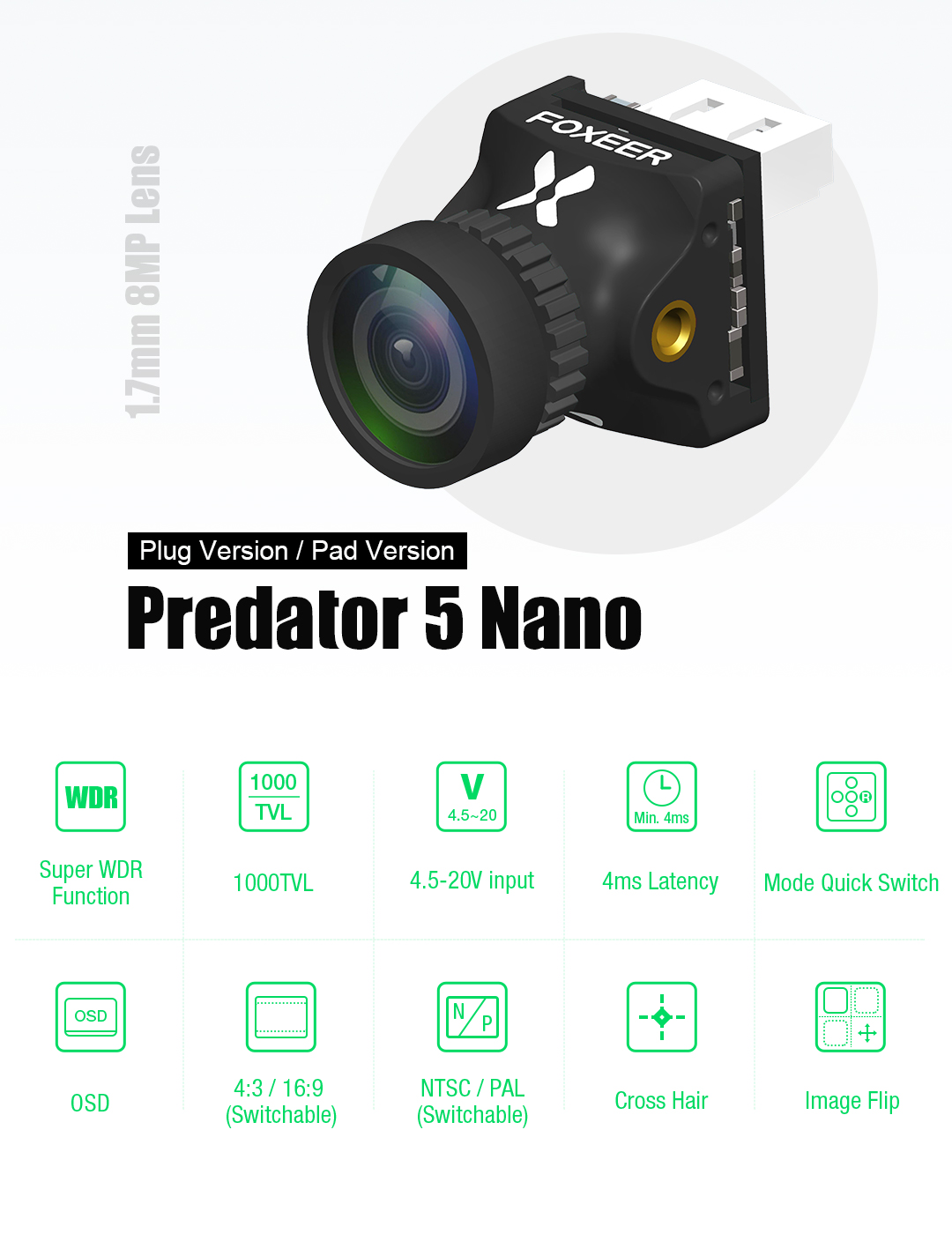

Foxeer Predator V5 Nano - Compact FPV Camera for Drones
Want to elevate your FPV experience with minimal weight and maximum image quality? The Foxeer Predator V5 Nano is a compact FPV camera that delivers exceptional performance whether you're flying in bright daylight or low-light environments. Equipped with an advanced Sony 1/3" CMOS sensor and super WDR technology, this camera ensures you get a clear and sharp image in any lighting condition. And all this in an ultra-compact format, perfect for small drones.
With a wide FOV of up to 155° and the ability to switch between 4:3 and 16:9 formats, the Predator V5 Nano is the ideal choice for discerning pilots seeking maximum flexibility and high-quality visuals. Easily control everything with a quick mode switch and the ability to connect an OSD for even more information right on your display.
Key Benefits:
- High-Quality Image – Advanced Sony 1/3" CMOS sensor and super WDR technology for brilliant visuals in both daylight and low light.
- Compact Design – Miniature size (14x14mm) and light weight (only 4.8g), perfect for small, lightweight drones.
- Wide Field of View – FOV up to 155° for an excellent view of your surroundings.
- Customizable Viewing – Switch between 4:3 and 16:9 formats for optimal viewing.
- Easy Operation – Quick mode switching between DAY, CLOUDY, NIGHT, and LED for adaptive lighting conditions.
Specifications:
- Sensor: Sony 1/3" CMOS
- Resolution: 1000TVL
- Aspect Ratio: 4:3 (default) / 16:9 (switchable)
- TV System: PAL (default) / NTSC (switchable)
- Video Output: CVBS Analog Signal
- Field of View: FOV-H: 125°, FOV-D: 155°
- Minimum Illumination: 0.01Lux
- White Balance: Auto
- DNR (Digital Noise Reduction): 3DNR, 2DNR
- WDR: Super WDR
- Modes: DAY/CLOUDY/Night/LED (quick switch)

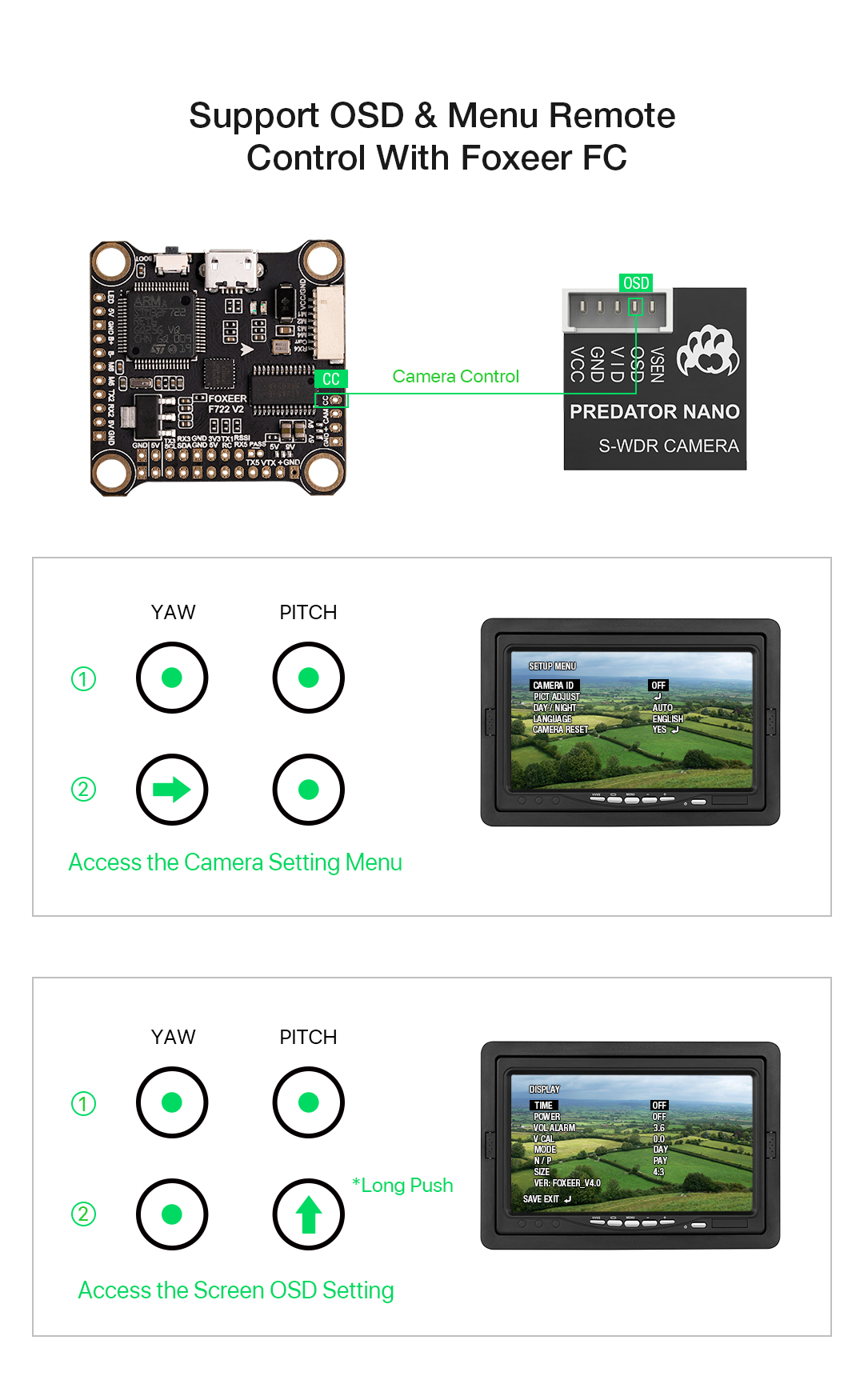

- OSD: Voltage, Camera Title, Time, Crosshair
- Flip Supported: Yes
- Input Voltage: 4.5V ~ 20V
- Working Temperature: -10°C ~ +50°C
- Weight: 4.8g (Solder Pad: 4.3g)

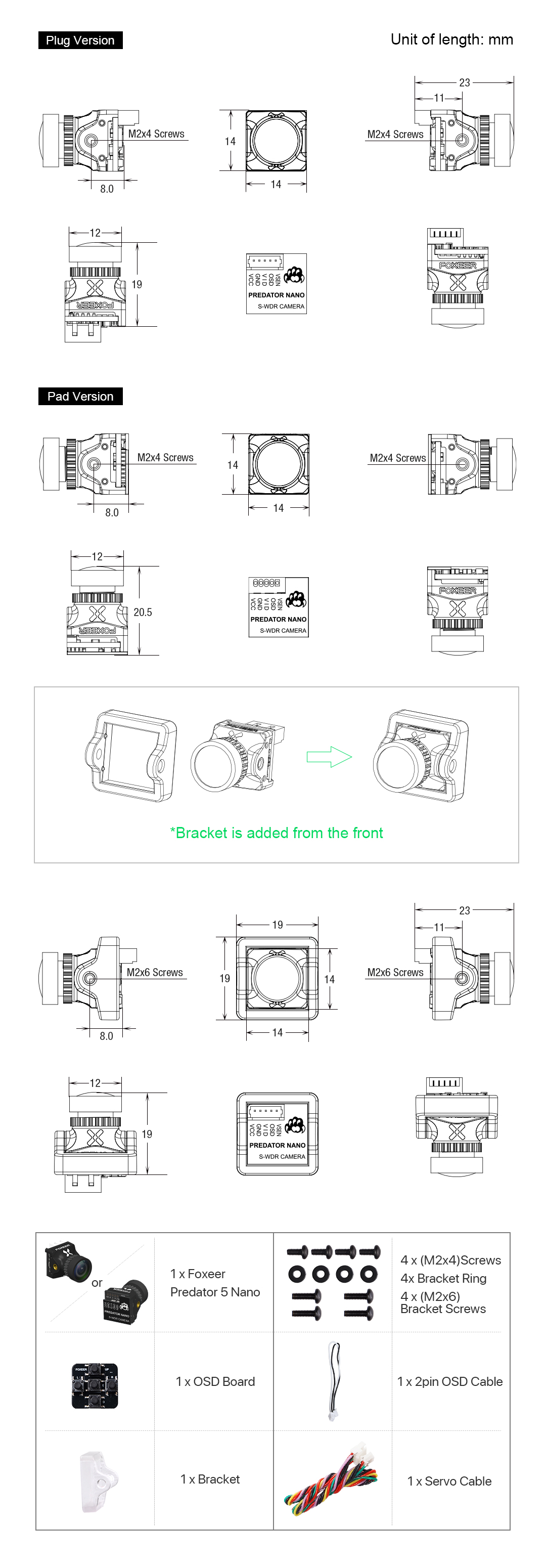

- Dimensions: 14x14mm (without bracket), 19x19mm (with bracket)
- Languages: English, German, French, Russian, Spanish, Chinese
Packing List:
- Foxeer Predator V5 Nano Camera *1
- Connecting Cables *1
- Mounting Bracket *1
Specifications:
| Product Name | Foxeer FPV camera PredatorV5 Nano |
| Sensor Type | Sony 1/3" CMOS Sensor |
| Scale | 4:3(default)/16:9 Switchable |
| Tv System | PAL(default)/NTSC Switchable |
| Resolution | 1000TVL |
| Shutter Speed | PAL 1/25~1/10000 sec |
| TV system | NTSC/PAL (switchable), NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| FOV | FOV-H:125° FOV-D: 155° |
| Shutter Speed | Auto |
| Minimum Illumination | 0.01Lux |
| White Balance | Auto |
| DNR | 3DNR 2DNR |
| WDR | Super WDR |
| Mode | DAY/CLOUDY/Night/LED |
| Fast Mode Switch | Long Press Right Button to switch among DAY/CLOUDY/Night/LED |
| Flight OSD | Voltage/Cam Title/Time/Cross Hair |
| Flip | Supported |
| Input Voltage | 4.5V~20V |
| Language | ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 50mA±15% @ DC12V 115mA±15% @ DC5V |
| Dimension | 14*14mm; 19*19mm(Add Bracket) |
| Weight | 4.8g Solder Pad:4.3g(Exclude cable) |
Additional parameters
| Category: | FPV Cameras |
|---|---|
| Warranty: | 2 years |
