FOXEER Pagoda PRO 5.8G RHCP Omni FPV Antenna
FOXEER Pagoda PRO 5.8G RHCP Omni FPV Antenna
- Interface: SMA
- Length: Long
Garance doručení
nepoškozeného zboží
Specifications:
FOXEER Pagoda PRO 5.8G RHCP Omni FPV Antenna
| Model | Pagoda PRO 5.8G RHCP Omni FPV Antenna |
| Center Frequency | 5.8GHz |
| Gain | 3dBi |
| Axial Ratio | Close to 1 |
| Band Width | 5.5G~6GHz |
| Radiation Efficiency | 98% |
| SWR | <1.22 at Center Frequency |

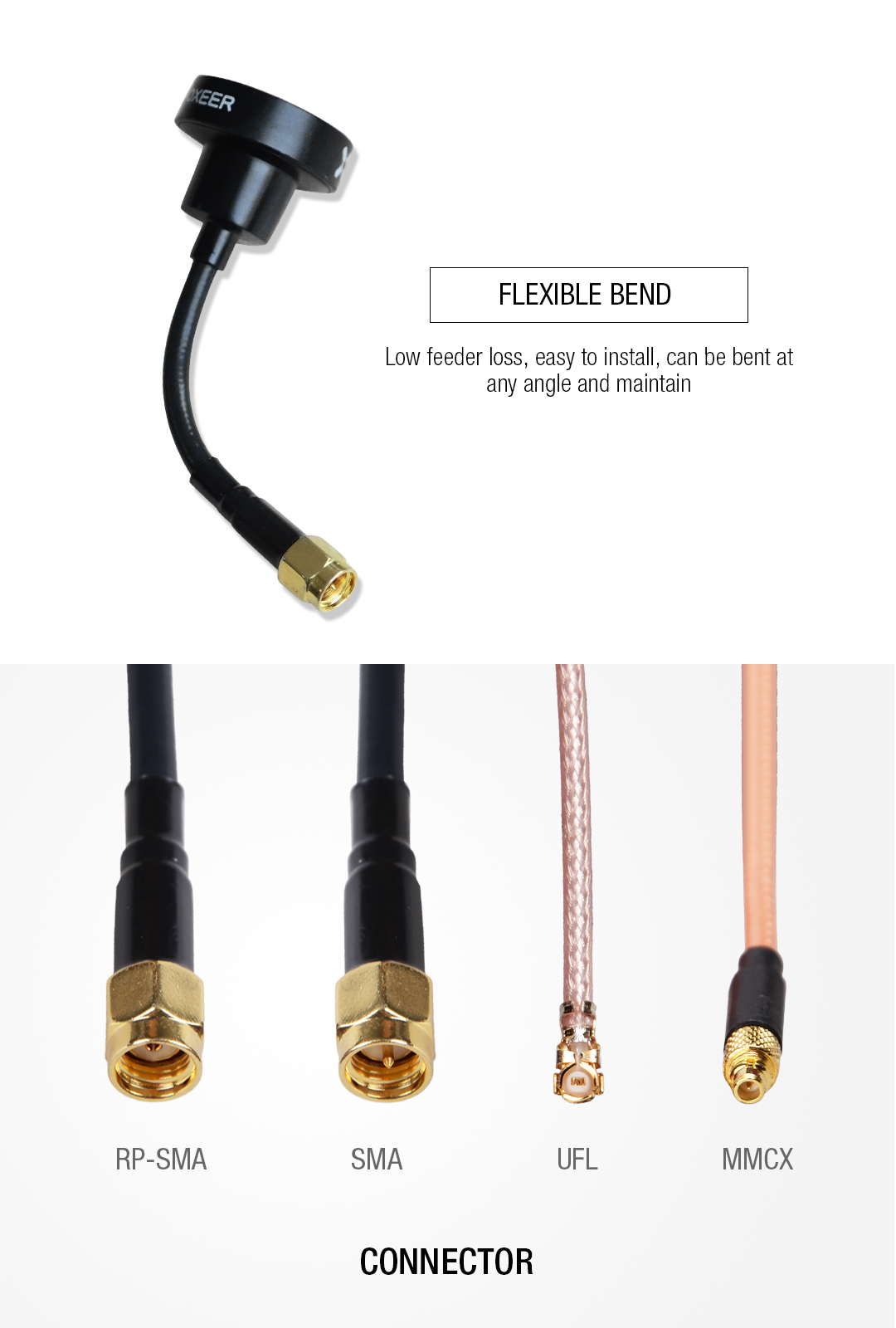

| Connector | SMA/RPSMA/StraightMMCX//UFL |
| Dimension | 17*23mm |
| Polarization | RHCP |
| Case Material | PC+ABS |
| Weight |
Long SMA/RPSMA: 11.5g Short SMA/RPSMA: 11g15cm SMA: 14.4gMMCX: 7.5gUFL: 6g |
| Quantity | 1pc Antenna |
| Length |
Long SMA/RPSMA: 86mm Short SMA/RPSMA: 68mm MMCX:91mmUFL: 86mm |
Additional parameters
| Category: | VTX Antennas |
|---|---|
| Weight: | 0.006 kg |
