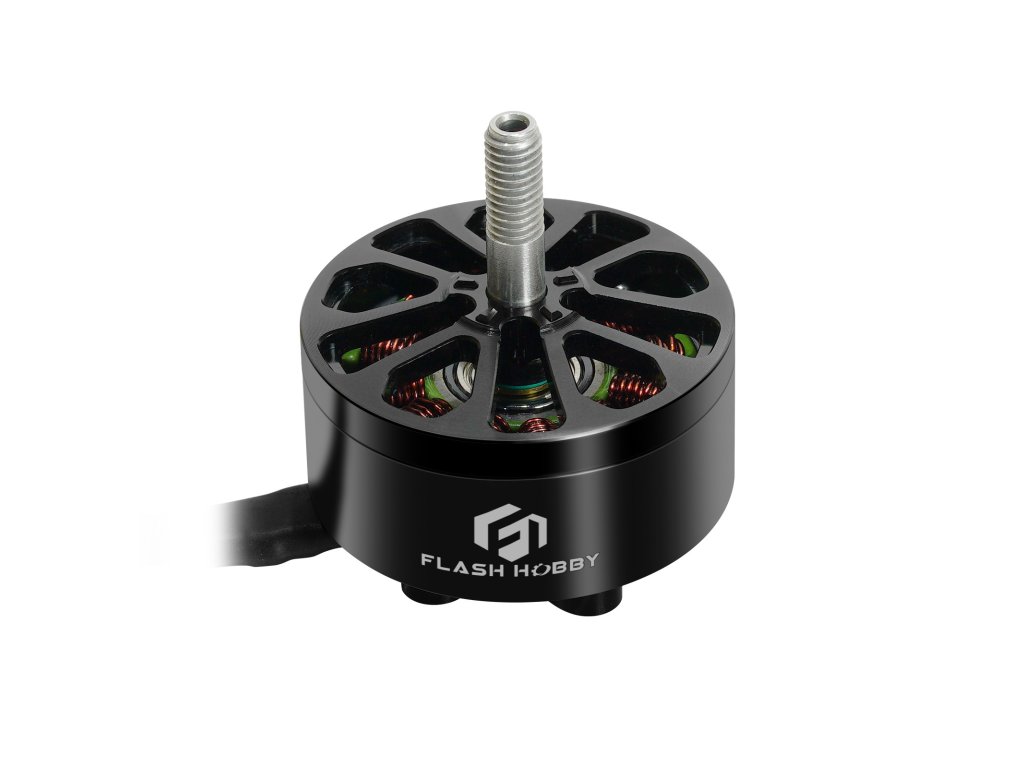

FlashHobby 3110 FPV Racing Motor
FlashHobby 3110 FPV Racing Motor - High-Performance Racing Motor for FPV Drones
Get ready for ultimate power and control in every race with the FlashHobby 3110 FPV Racing Motor! Designed for serious drone racing, this motor delivers extreme thrust, high speed, and exceptional durability. The FlashHobby 3110 takes your racing to the next level with its high-performance capabilities, powerful thrust, and precise engineering. Whether you're competing at the highest level or pushing your drone to the limit, this motor won’t let you down.
Equipped with 52H-grade magnets, a rugged CNC-machined 6061-T6 aluminum bell, and premium NSK bearings, the FlashHobby 3110 ensures smooth operation and long-lasting reliability. With a 900KV rating and up to 1410W maximum power, this motor is perfect for larger FPV drones that use 9-10 inch props. Get ready for powerful launches, sharp turns, and top-notch stability during every flight.
Key Benefits:
- Maximum Thrust: With up to 3600 g of thrust, the FlashHobby 3110 ensures powerful acceleration and quick maneuvers.
- Durable Construction: CNC-machined 6061-T6 aluminum bell and heat-resistant features ensure long-lasting performance even under extreme conditions.
- Smooth Operation: High-speed NSK bearings provide smooth, quiet, and reliable motor performance.
- High Power Output: With up to 1410W at 25V (6S), this motor ensures peak performance for all your FPV racing needs.
- Versatile Compatibility: Recommended for 9-10 inch props, offering stability and control for racing drones.
Specifications:
- Weight: 85 g (including cables)
- Motor Size: 37.1 x 27 mm
- Shaft Diameter: 5.0 mm
- Motor Mount: 19x19 mm (M3x4)
- Configuration: 12N14P (12 poles, 14 windings)
- Motor Cable: 16#AWG, 300 mm
- KV Value: 900KV (or customized)
- Recommended Prop Size: 9-10 inch
- Max Thrust: 3600 g
- Voltage: 25V (6S)
- Recommended ESC: 50A~60A
- Max Power: 1410 W
- Recommended Prop: HQ9050-3R, GF1050-3R 9-10 inch props
Specifications
| Product Name | FlashHobby 3110 FPV Racing Motor |
| Weight | 85g (including the cables) |
| Motor Size | 37.1 x 27mm |
| Shaft Diameter | 5.0mm |
| Motor Mount | 19*19mm(M3*4) |
| Configuration | 12N14P |
| Motor Cable | 16#AWG 300mm |
| KV Value | 900KV or customed KV |
| Max pull | 3600g |
| Volts | 25V(6S) |
| Suggested ESC | 50A~60A |
| Maximum Power | 1410W |
| Suggested Prop | HQ9050-3R, GF1050-3R prop |
Recommend: 9~10 inch prop application
A3110 RC Brushless Drone Racing Motor for FPV Drone,X Class Drone
3110 FPV Racing Motor Features:
- 52H Level Magnet
- Precision Balanced Rotor Test
- 14P12N High Torque Motor Design
- CNC 6061-T6 Aluminum Bell
- High RPM Imported NSK-5x11x5mm Bearing
- High Temperature Resistant Copper Wire Winding
