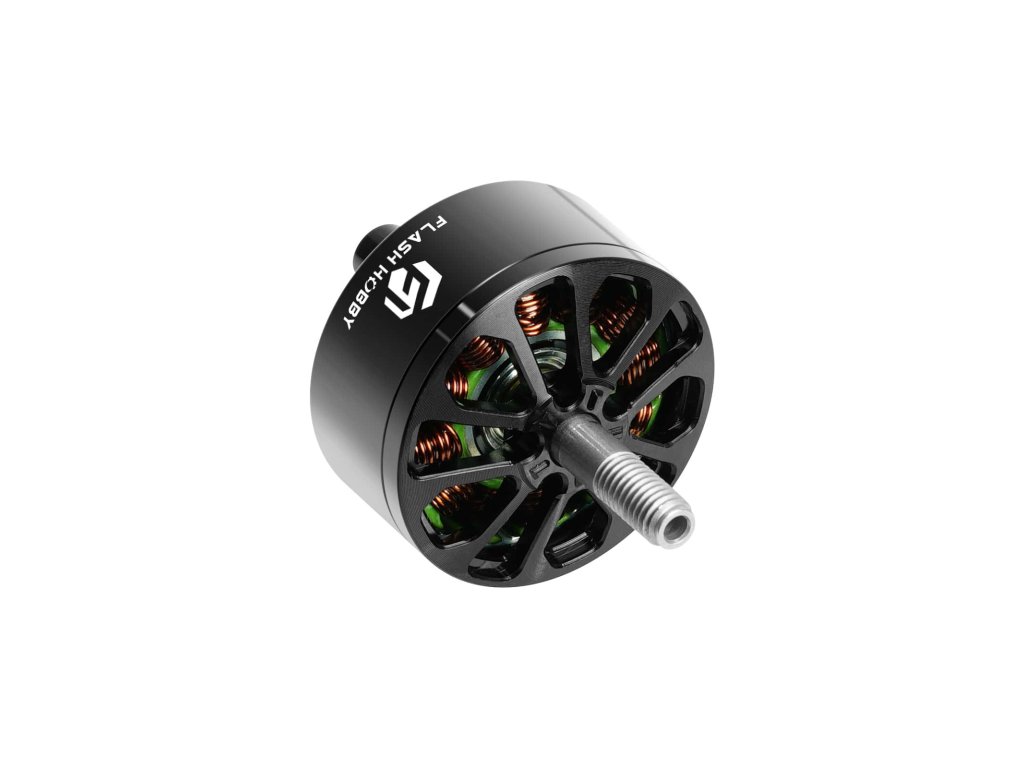

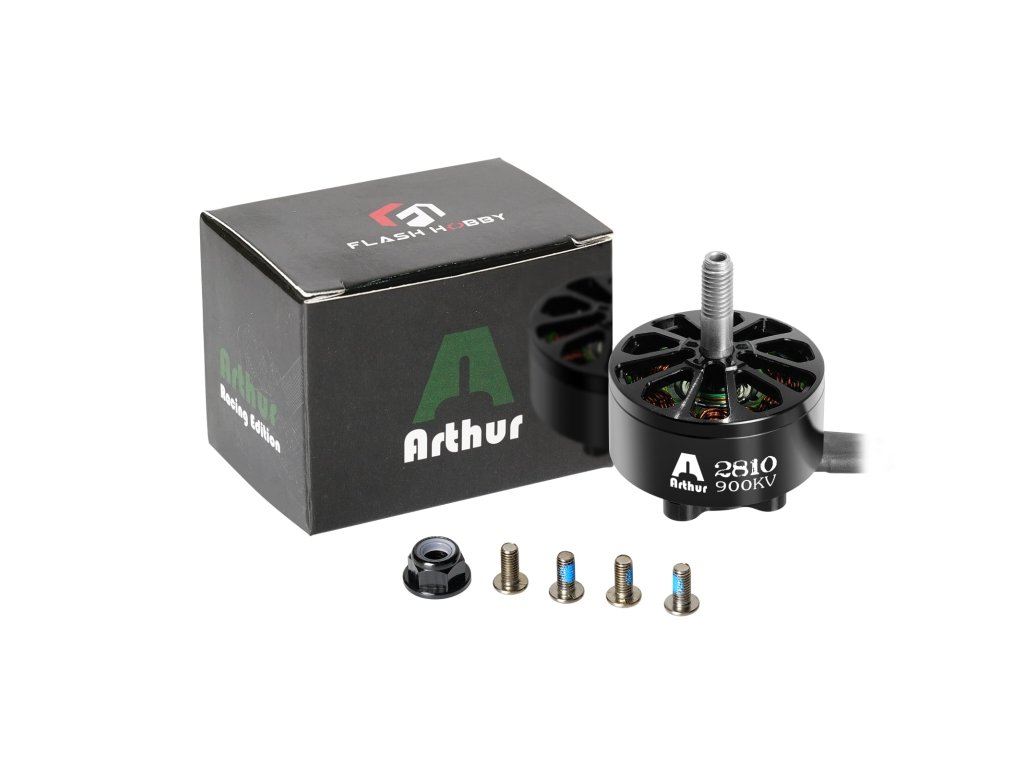

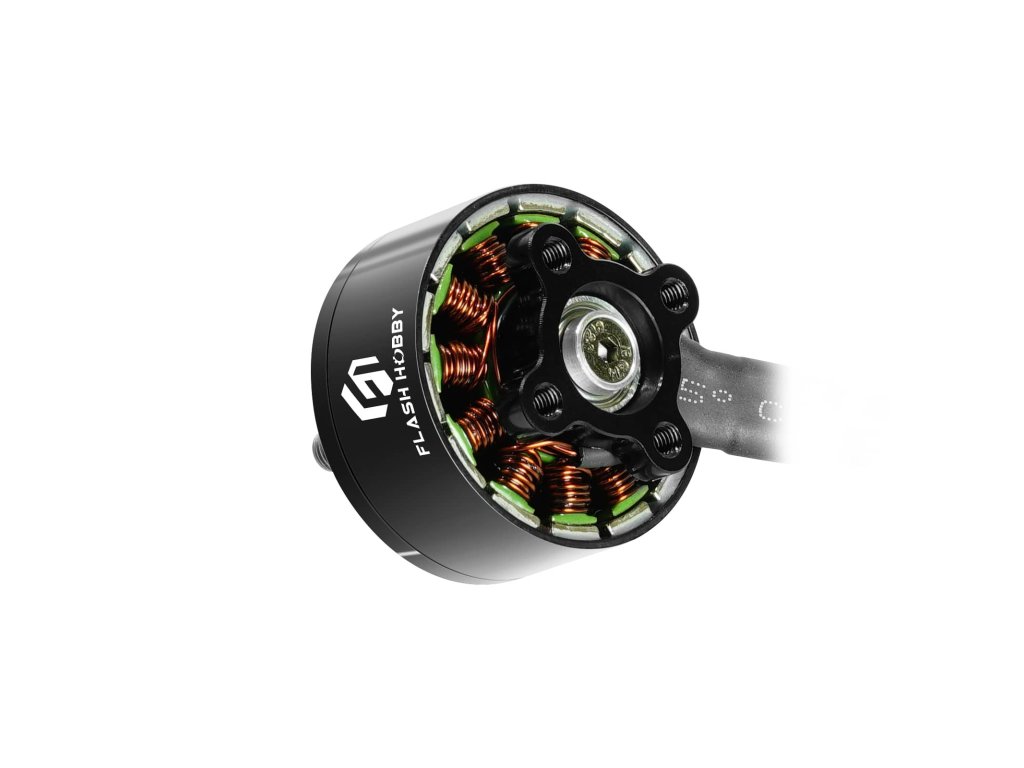

FlashHobby 2810 FPV Racing Motor
FlashHobby 2810 FPV Racing Motor - High-Performance Racing Motor for FPV Drones
Take your racing skills to the next level with the FlashHobby 2810 FPV Racing Motor! Engineered for serious drone racing enthusiasts, this motor delivers unmatched power, smooth operation, and exceptional durability. Whether you’re flying in high-stakes competitions or pushing your drone to its limits, the FlashHobby 2810 ensures maximum performance and precision in every flight.
With a 12N14P design, precision CNC-machined 6061-T6 aluminum bell, and high-speed NSK/NMB bearings, expect unparalleled reliability and torque. The FlashHobby 2810 motor provides up to 2465 g of thrust when powered by a 24V (6S) battery, and is ideally paired with 7-8 inch props for exceptional control and speed.
Key Benefits:
- Unmatched Performance: Delivers up to 2465 g of thrust, perfect for FPV racing and freestyle flying.
- Durability & Reliability: CNC-machined aluminum bell from high-grade 6061-T6 for long-lasting performance.
- Efficient Power: 52H-grade magnets and high-temperature resistant copper wire winding for optimum power output and heat resistance.
- Smooth Operation: High-quality NSK/NMB bearings provide smooth and quiet motor performance.
- Versatile Compatibility: Recommended for use with 7-8 inch props, making it ideal for various FPV drone applications.
Specifications:
- Weight: 67.6 g (including cables)
- Motor Size: 33.6 x 40.8 mm
- Shaft Diameter: 4.0 mm
- Motor Mount: 19x19 mm (M3x4)
- Configuration: 12N14P (12 poles, 14 windings)
- Motor Cable: 18#AWG, 220 mm
- KV Value: 1100KV (or customized)
- Recommended Prop Size: 7-8 inch
- Max Thrust: 2465 g
- Voltage: 24V (6S)
- Recommended ESC: 40A~60A
- Max Power: 934.9 W
- Recommended Prop: GF7043-3R 7-8 inch props
Specifications
| Product Name | 2810 FPV Racing Motor |
| Weight | 67.6g (including the cables) |
| Motor Size | 33.6 x 40.8mm |
| Shaft Diameter | 4.0mm |
| Motor Mount | 19*19mm(M3*4) |
| Configuration | 12N14P |
| Motor Cable | 18#AWG 220mm |
| KV Value | 1100KV or customed KV |
Recommend: 7~8 inch prop application
A2810 RC Brushless Motor for FPV Drone,X Class Drone
Features:
- 52H Level Magnet
- Precision Balanced Rotor Test
- 14P12N High Torque Motor Design
- CNC 6061-T6 Aluminum Bell
- High RPM Imported(NSK/NMB) Bearing
- High Temperature Resistant Copper Wire Winding
- A2810KV 1100KV Motor Specification
- Max pull：2465g
- Volts：24V(6S)
- Suggested ESC: 40A~60A
- Maximum Power：934.9W
- Suggested Prop: GF7043-3R inch prop
