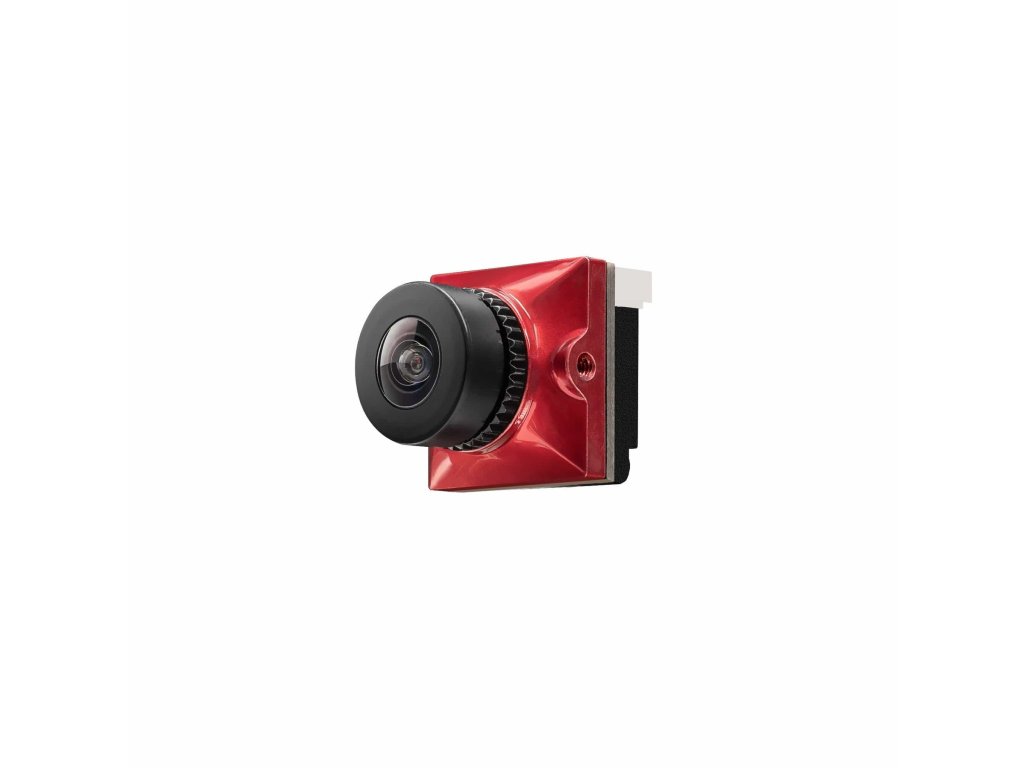

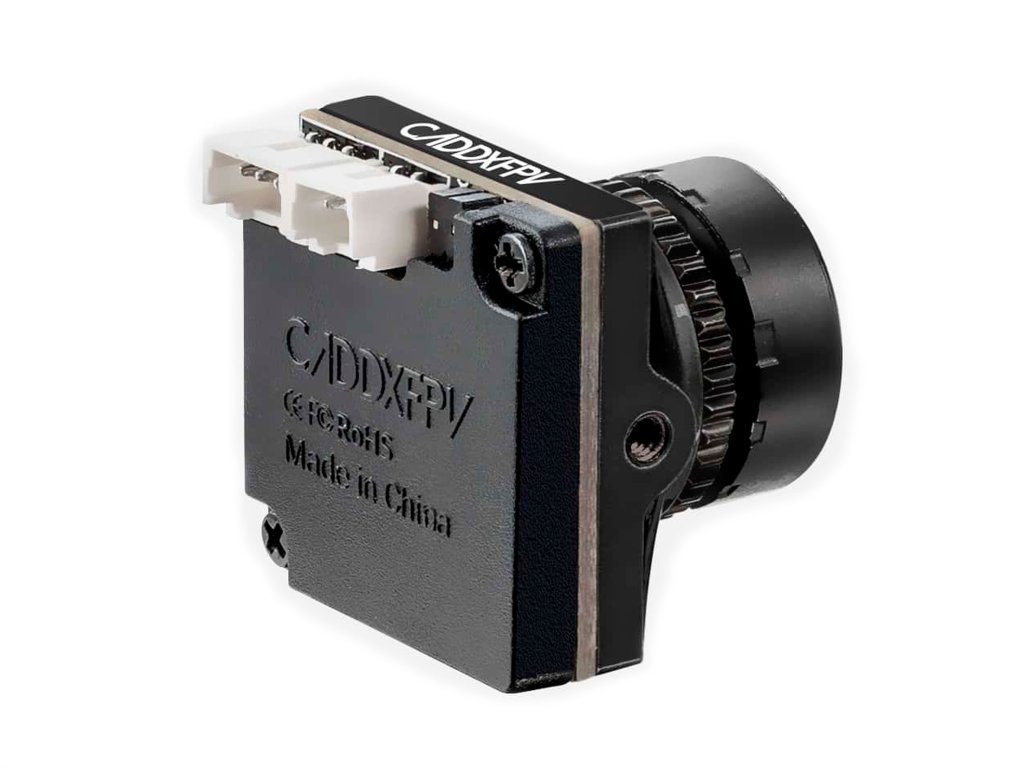

CADDXFPV Ratel2 Analog Camera
Caddx Ratel 2 is a high quality analog FPV camera that works in both low light and daytime conditions.
Featuring a 1/1.8" Starlight HDR sensor, the camera offers rich daytime images with 8ms latency, and also has excellent night vision performance with Starlight technology.
Ratel 2 has a number of improvements over the previous version of Ratel:
- New DJI Air Unit lens with 5MP resolution;
- Increased viewing angle up to 165°;
- Thickened lens frame prevents damage to the optics;
- Sturdy aluminum case, fully protects the camera electronics;
- Significantly lighter weight, only 5.9g.
- Camera settings are carried out using a separate remote control (joystick), which is included in the kit. To configure the Caddx Ratel camera, you need to connect the remote control to the appropriate connector on the camera, turn on the camera, video transmitter and glasses or monitor. The image from the camera will display menu parameters (you can select Russian), with which you can configure the camera.
Specifications:
| Product Name | CADDXFPV Ratel2 Analog Camera |
| Matrix | 1/1.8" CMOS Starlight HDR |
| Resolution | 1200TVL |
| Lens | 2.1mm |
| Viewing angle | 165° |
| Aspect ratio | 16:9/4:3 (switchable) |
| TV system | NTSC/PAL (switchable) |
| Latency | 8ms |
| Synchronization | internal |
| Minimum illumination | 0.0001Lux |
| WDR | Super WDR |
| DNR | 3 DNR |
| Night mode | day/night, auto |
| Video output | CVBS |
| Wide Power Input | 4.5-36V |
| Working temperature | -20°C ~ +60°C |
| Dimensions | 19mm*19mm*20mm |
| Weight | 5.9g |
| Variant | Red/Black |
| SKU | MN01-2000R |
| Collection | Analog Camera |

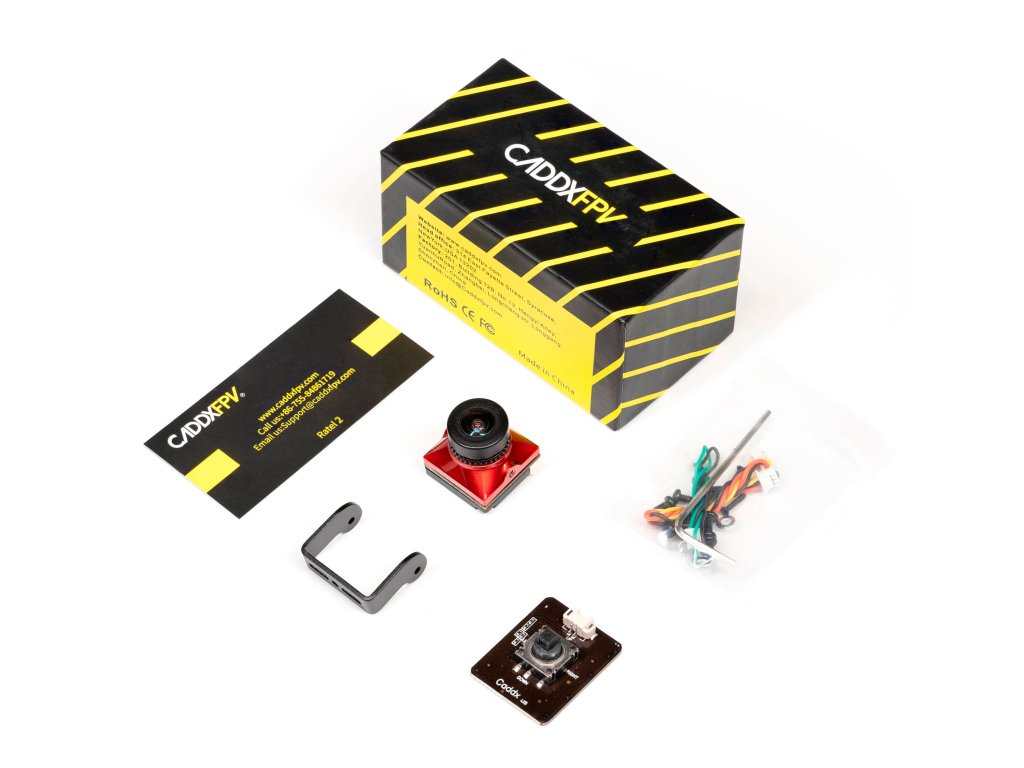

Packing list:
Camera Caddx Ratel 2 (black) *1
Menu Board *1
2pin Silicone cable *1
3pin Silicone cable *1
1.5mm Allen Wrench *1
Screw set *1
Additional parameters
| Category: | FPV Cameras |
|---|---|
| Weight: | 0.059 kg |
