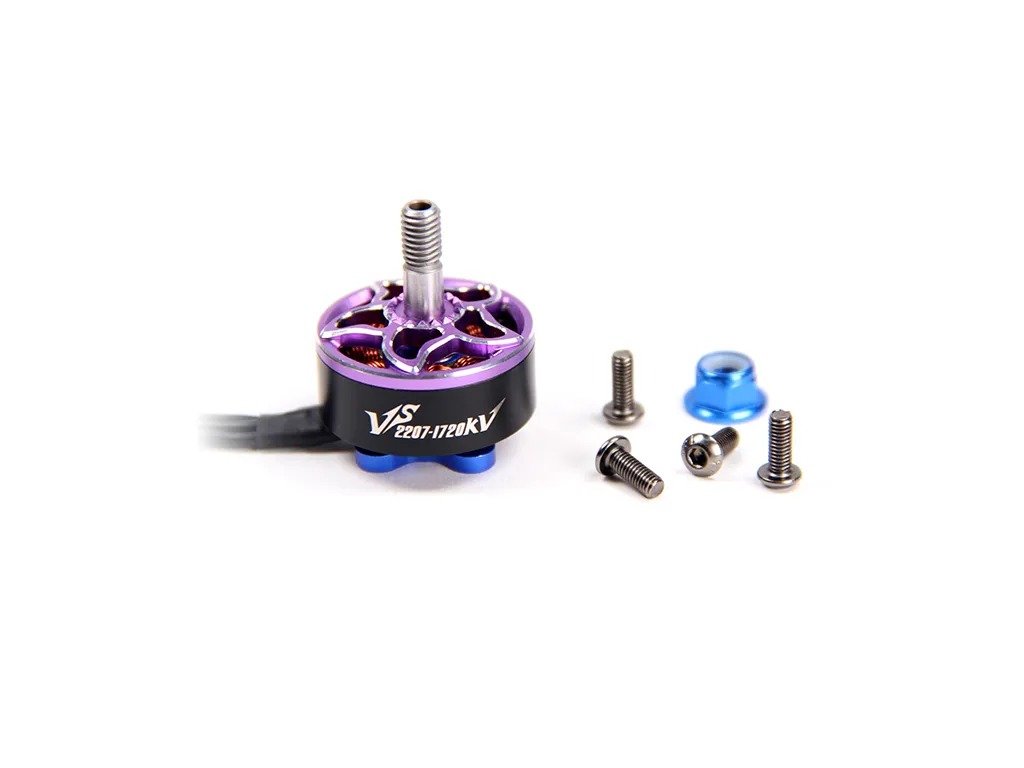

BrotherHobby VS 2207 Motor
Take control of the skies with the BrotherHobby VS 2207 Motor. Designed for maximum efficiency and performance, this high-performance brushless motor is perfect for drones used in racing, freestyle, or demanding flight conditions. With its precision engineering, high-quality materials, and innovative technology, this motor ensures not only exceptional power but also long-lasting durability.
Available in multiple KV ratings (1720KV, 2400KV, 2700KV), the BrotherHobby VS 2207 can be tailored to meet your specific needs, whether you’re after stability for smooth flights or raw speed for competitive racing.
Built with Al 7075 for the base casing and Kawasaki silicon steel stator, this motor offers incredible strength and longevity. The Japanese NMB bearings paired with N52H arc magnets ensure smooth, quiet operation even at high speeds.
Key Benefits:
- High performance & efficiency: Brushless technology and strong magnets deliver outstanding power and efficiency.
- Versatile options: Choose from three KV variants (1720KV, 2400KV, 2700KV) to match your flight needs perfectly.
- Durability & longevity: Premium materials (Al 7075, Kawasaki silicon steel) provide maximum strength and long-term reliability.
- Smooth operation: Japanese NMB bearings ensure a smooth and quiet motor at high RPMs.
- Ideal for a wide range of drones: Compatible with 4-6S LiPo batteries for optimal performance in various conditions.
Specifications:
- Model: BrotherHobby VS 2207 Motor
- KV options: 1720KV / 2400KV / 2700KV
- Base casing material: Al 7075
- Stator: 0.2mm Kawasaki silicon steel
- Configuration: 12N14P
- Prop adapter shaft thread: M5
- Shaft: SUS 420 hollow shaft
- LiPo Cell Count: 4-6S
- Bolt Pattern: M3 (16x16mm)
- Bearings: Japanese NMB 8x3x4mm
- Rotor: N52H arc magnets
- Weight: 32.5g with 16cm SR wires
- Wire Length: 16cm, AWG 20
- Bell Cap: Al 7075
Specifications
| Product Name | BrotherHobby VS 2207 Motor |
| KV | 1720KV/2400KV/2700KV |
| Base casing | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Configuration | 12N14P |
| Prop Adapter Shaft Thread | M5 |
| Shaft | SUS 420 hollow shaft |
| No.of Cells(Lipo) | 4-6S |
| Bolt Pattern | M3(16X16mm) |
| Bearings | Japanese NMB 8x3x4mm |
| Rotor | N52H arc magnets |
| Weight | 32.5g with 16cm SR wires |
| Wire AWG | 20AWG 16cm length |
| Bell cap | Al 7075 |
/50280b94b1.jpg)
/9ee5ec74af.jpg)
/a0d6d8e577.jpg)
/c91f7518a6.jpg)
/f5a07c73ac.jpg)
