BrotherHobby Tornado T7 4215 Motor X Class

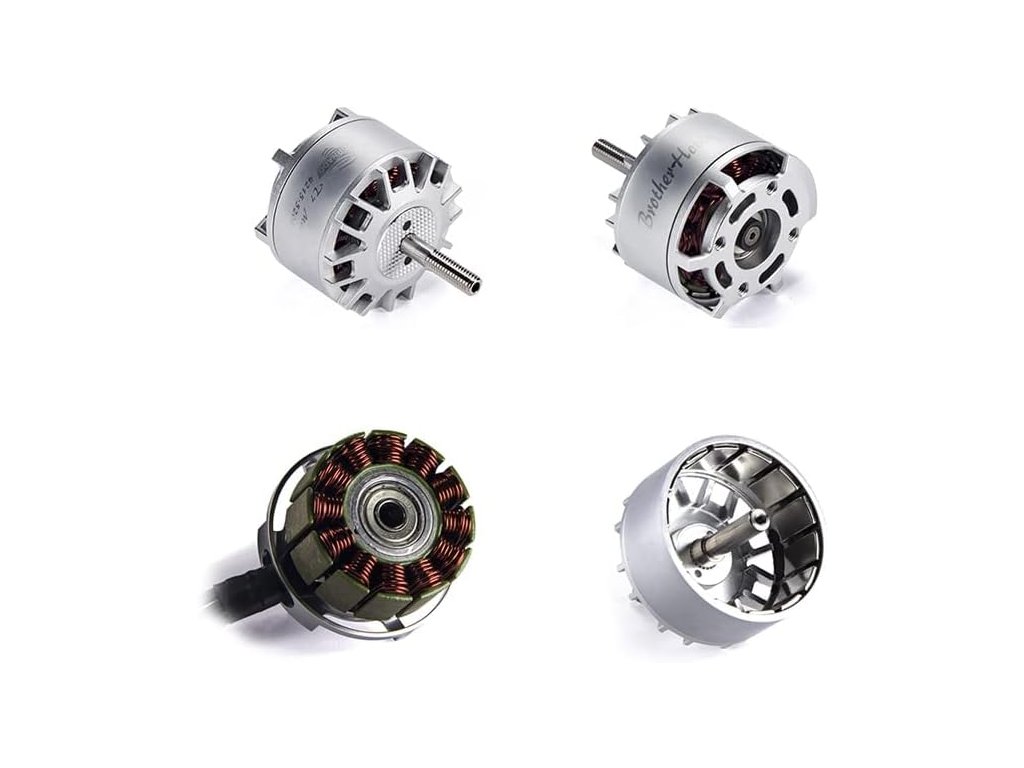

BrotherHobby Tornado T7 4215 X-Class Motor - High-Performance Motor for X-Class Racing Drones
Unleash unparalleled power and unstoppable force with the BrotherHobby Tornado T7 4215 X-Class Motor! Engineered for X-Class racing drones, this motor delivers extreme performance, speed, and precision – everything you need to dominate the competition.
With a Kawasaki silicon steel stator, titanium alloy hollow shaft, and N52H magnets, this motor offers immense power and exceptional efficiency at high RPMs. Whether you opt for the 380KV, 520KV, 680KV, or 800KV version, you can rely on this motor to push your drone to its limits. Designed for extreme durability, the Al 7075 aluminum casing and Japanese NMB bearings ensure longevity and resistance to harsh conditions. Compatible with 6-12S LiPo batteries, the BrotherHobby Tornado T7 is the ultimate choice for competitive racing and freestyle flying.
If you're looking to stay ahead of the pack, the BrotherHobby Tornado T7 4215 is your ticket to victory!
Key Benefits:
- Massive Power: Get up to 380KV to 800KV for incredible thrust, speed, and force that will leave your competitors behind.
- Extreme Durability: Titanium alloy shaft and Al 7075 aluminum casing provide maximum resistance to impacts and wear.
- High Efficiency: N52H arc magnets and Kawasaki silicon steel deliver top-notch performance even at high RPMs.
- Smooth Operation: Japanese NMB bearings ensure smooth, quiet operation with minimal vibrations.
- Power Flexibility: Compatible with 6-12S LiPo batteries, offering a range of power setups to suit your racing needs.
Specifications:
- KV Values: 380KV / 520KV / 680KV / 800KV
- Base Casing: Al 7075 aluminum
- Stator: 0.2 mm Kawasaki silicon steel
- Configuration: 12N14P (12 poles, 14 windings)
- Prop Adapter Shaft Thread: M6
- Shaft: Titanium alloy hollow shaft
- Cell Count (LiPo): 6S / 12S
- Bolt Pattern: M4 (30x30 mm)
- Bearings: Japanese NMB 17x6x6 mm
- Rotor: N52H arc magnets
- Weight: 260 g (with 75 cm SR wires)
- Wire AWG: 14#, 750 mm length
- Bell Cap: Al 7075 aluminum
Specifications
| Product Name | BrotherHobby Tornado T7 4215 Motor X Class |
| KV | 380KV/520KV/680KV/800KV |
| Base casing | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Configuration | 12N14P |
| Prop Adapter Shaft Thread | M6 |
| Shaft | Titanium Alloy hollow shaft |
| No.of Cells(Lipo) | 6-12S |
| Bolt Pattern | M4(30X30mm) |
| Bearings | Japanese NMB 17X6X6 |
| Rotor | N52H arc Magnet |
| Weight | 260g with 75cm SR wires |
| Wire AWG | 14#,750mm Length |
| Bell cap | Al 7075 |
