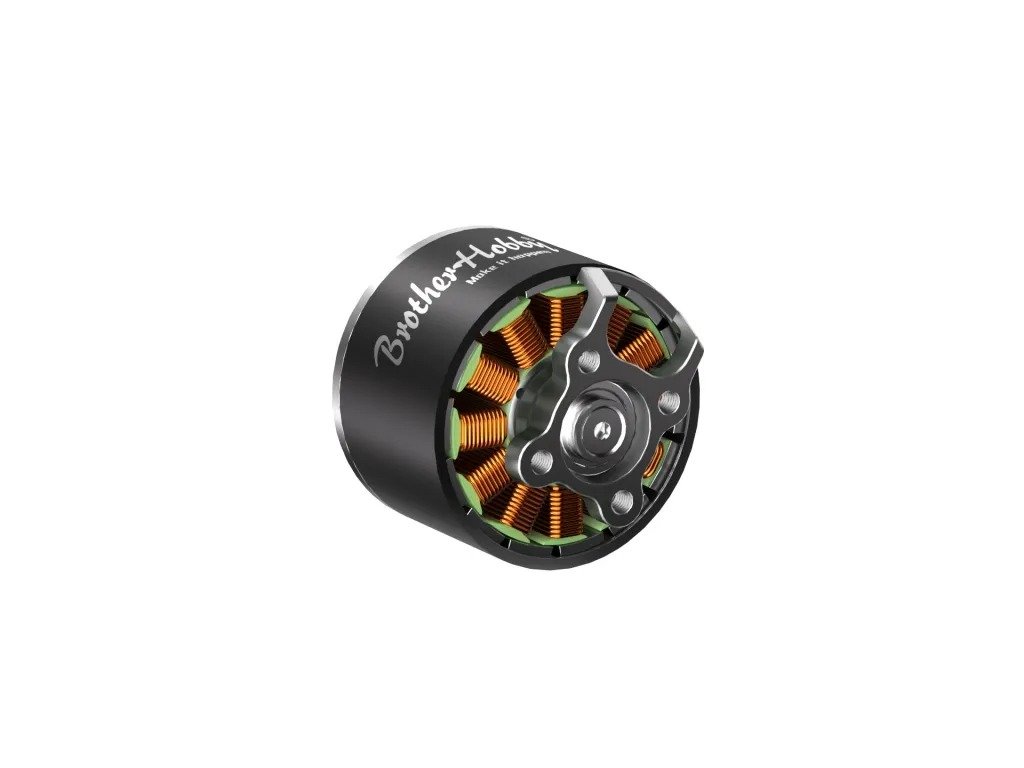

BrotherHobby Avenger 3320 Motor
BrotherHobby Avenger 3320 FPV Racing Motor - High-Performance Racing Motor for FPV Drones
Unleash unmatched power and precision with the BrotherHobby Avenger 3320 FPV Racing Motor! Designed for extreme performance in racing and freestyle flights, this motor ensures maximum thrust, speed, and stability, giving you the competitive edge you need to win.
With a titanium alloy hollow shaft, premium NMB bearings, and Kawasaki silicon steel stator, the Avenger 3320 is built for maximum efficiency and durability. N48SH arc magnets and Al 7075 aluminum casing ensure this motor can withstand even the harshest conditions. Compatible with both 8S and 12S LiPo batteries, you can fine-tune your power setup to suit any racing scenario. Whether you're a professional racer or aiming to dominate amateur events, the BrotherHobby Avenger 3320 is your secret weapon.
Key Benefits:
- Maximum Power & Thrust: Achieve up to 690KV or 400KV for speed and force that will propel you ahead of the competition.
- Durability & Longevity: Titanium alloy shaft and Al 7075 aluminum bell provide exceptional resistance to impacts and wear.
- High Efficiency: N48SH arc magnets and Kawasaki silicon steel ensure optimal performance and power efficiency at all times.
- Premium Bearings: Japanese NMB bearings deliver smooth, quiet, and vibration-free operation.
- Power Flexibility: Supports 8S and 12S LiPo batteries, giving you the flexibility to choose the best power setup for any race.
Specifications:
- KV Values: 690KV / 400KV
- Base Casing: Al 7075 aluminum
- Stator: 0.2 mm Kawasaki silicon steel
- Configuration: 12N14P (12 poles, 14 windings)
- Prop Adapter Shaft Thread: M5
- Shaft: Titanium alloy hollow shaft
- Cell Count (LiPo): 8S / 12S
- Bolt Pattern: M3 (19mm x 19mm)
- Bearings: Japanese NMB 1264 mm
- Rotor: N48SH arc magnets
- Weight: 151 g
- Wire AWG: 16# 300 mm
- Bell Cap: Al 7075 aluminum
Specifications
| Product Name | BrotherHobby Avenger 3320 Motor |
| KV | 690KV / 400KV |
| Base casing | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Configuration | 12N14P |
| Prop Adapter Shaft Thread | M5 |
| Shaft | Titanium Alloy hollow shaft |
| No.of Cells(Lipo) | 8S/12S |
| Bolt Pattern | M3 (19mmX19mm) |
| Bearings | NMB 12*6*4 mm |
| Rotor | N48SH arc magnets |
| Weight | 151g |
| Wire AWG | 16# 300mm |
| Bell cap | Al 7075 |
/06fd25e841.jpg)
/10c3412255.jpg)
/9ae5ae86fb.jpg)
/a6c3beee52.jpg)
/b26923bdd2.jpg)
/fa69233c5d.jpg)
Additional parameters
| Category: | Drone Motors |
|---|---|
| Warranty: | 2 years |
