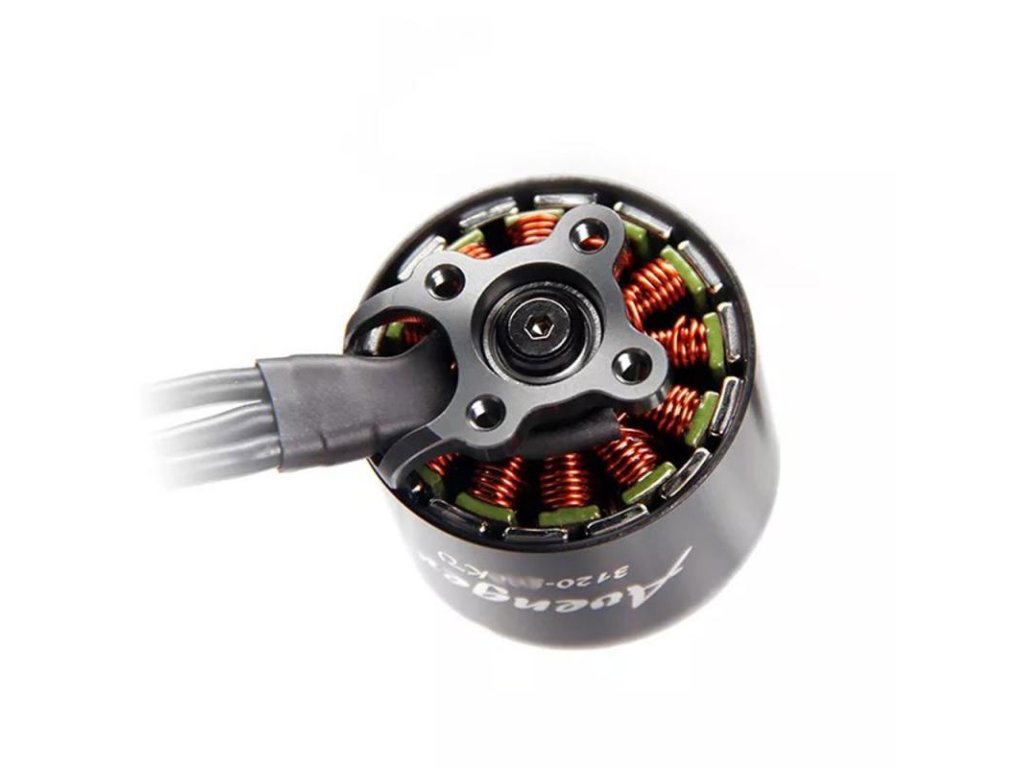

BrotherHobby Avenger 3120 Motors
BrotherHobby Avenger 3120 FPV Racing Motors - High-Performance Motors for FPV Drone Racing
Prepare for mind-blowing power and precision control with the BrotherHobby Avenger 3120 FPV Racing Motors! Designed for professional FPV racing and freestyle flights, these motors deliver maximum performance, reliability, and stability – essential for the races where milliseconds make all the difference.
With a titanium alloy hollow shaft, premium NMB bearings, and Kawasaki silicon steel stator, this motor not only provides incredible thrust and RPMs but also long-lasting durability under demanding conditions. The BrotherHobby Avenger 3120 is compatible with both 8S and 12S LiPo batteries, giving you flexibility in choosing your power setup for every racing scenario. Equipped with N52H arc magnets, this motor ensures extreme power and efficiency even at high RPMs.
The Al 7075 aluminum bell cap and M5 prop adapter thread make this motor not only powerful but also resilient to impacts and vibrations – essential for high-speed racing. Weighing just 142.7 g, this motor offers the perfect balance between performance and weight, making it the ultimate choice for those looking to stay ahead in every race.
Key Benefits:
- Unmatched Thrust & Power: Achieve up to 700KV for maximum RPMs and performance, giving you an edge over the competition.
- Durability & Reliability: Titanium alloy shaft and Al 7075 aluminum casing provide exceptional resistance to impacts and wear.
- High Efficiency: N52H arc magnets and Kawasaki silicon steel ensure peak performance and efficiency even at extreme speeds.
- Premium Bearings: Japanese NMB bearings offer smooth, quiet operation and long lifespan.
- Flexibility & Compatibility: Supports 8S and 12S LiPo batteries, ideal for different racing setups.
Specifications:
- KV Values: 500KV / 700KV
- Base Casing: Al 7075 aluminum
- Stator: 0.2 mm Kawasaki silicon steel
- Configuration: 12N14P (12 poles, 14 windings)
- Prop Adapter Shaft Thread: M5
- Shaft: Titanium alloy hollow shaft
- Cell Count (LiPo): 8S / 12S
- Bolt Pattern: M3 (19mm x 19mm)
- Bearings: Japanese NMB 1155 mm
- Rotor: N52H arc magnets
- Weight: 142.7 g (with 30cm SR wires)
- Wire AWG: 16AWG, 30cm length
- Bell Cap: Al 7075 aluminum
Specifications
| Product Name | BrotherHobby Avenger 3120 Motors |
| KV | 500KV/700KV |
| Base casing | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Configuration | 12N14P |
| Prop Adapter Shaft Thread | M5 |
| Shaft | Titanium Alloy hollow shaft |
| No.of Cells(Lipo) | 8S/12S |
| Bolt Pattern | M3 (19mmX19mm) |
| Bearings | Japanese NMB 11*5*5 mm |
| Rotor | N52H arc magnets |
| Weight | 142.7 with 30cm SR wires |
| Wire AWG | 16AWG 30cm length |
| Bell cap | Al 7075 |
Additional parameters
| Category: | Drone Motors |
|---|---|
| Warranty: | 2 years |
