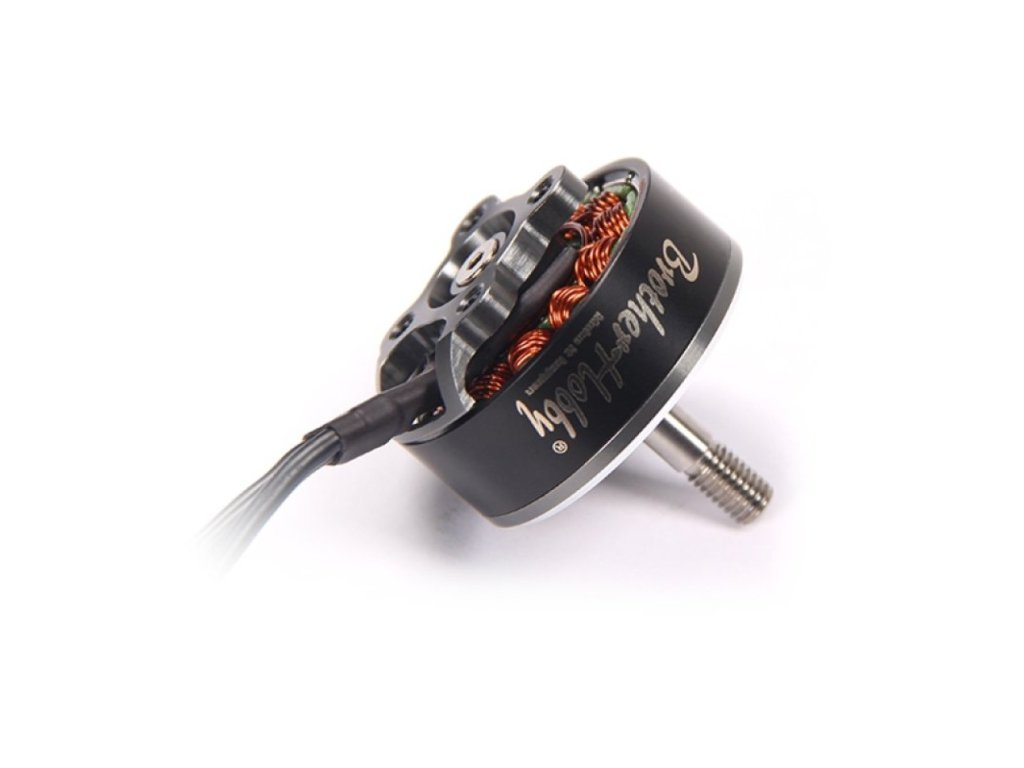

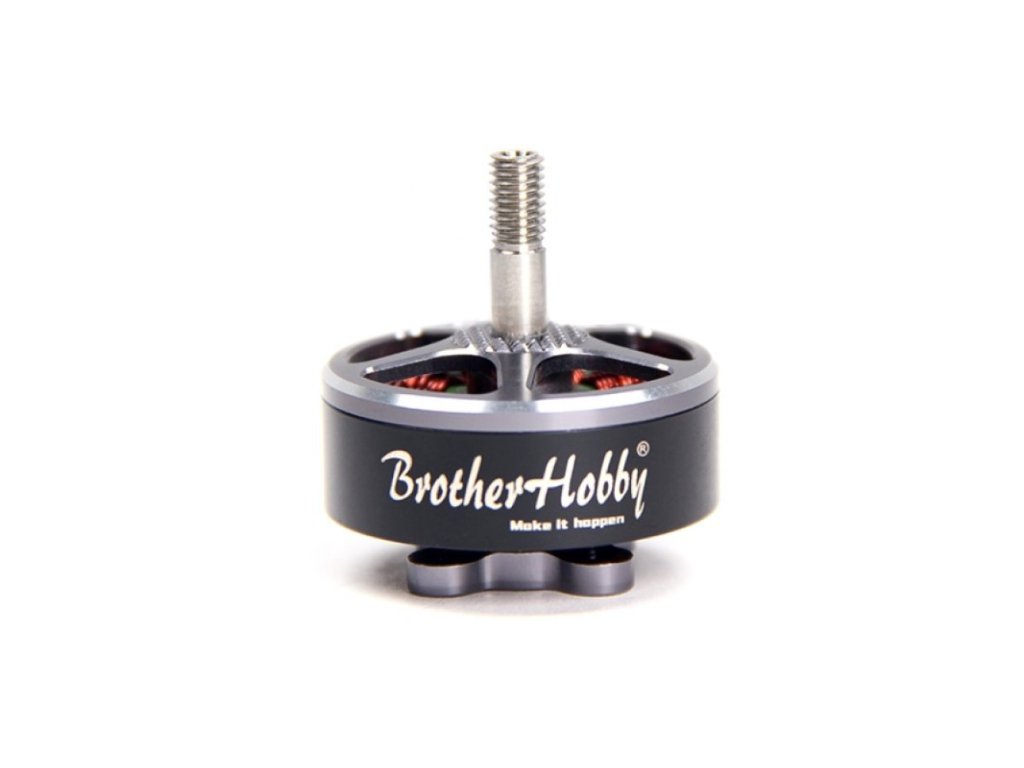

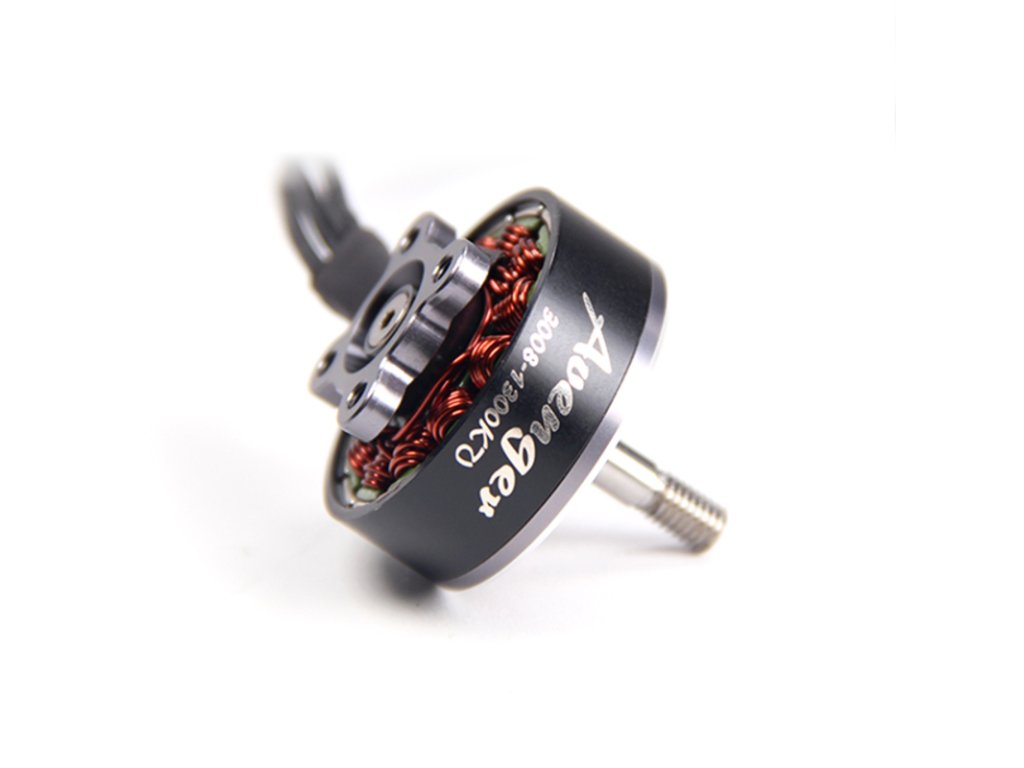

BrotherHobby Avenger 3008 Motor
BrotherHobby Avenger 3008 Brushless Motor for Drones
Take flight with the BrotherHobby Avenger 3008, a brushless motor engineered for maximum power, reliability, and durability. This motor is the perfect choice for demanding drone pilots who want the best performance for freestyle, racing, or FPV flying. With advanced materials and technology, the Avenger 3008 guarantees long-lasting performance and peak efficiency at high RPMs.
The motor features Japanese NMB bearings and N52H magnets, ensuring smooth, silent operation even under load. The titanium alloy hollow shaft and Al 7075 casing, combined with 0.2mm Kawasaki silicon steel for the stator, provide a lightweight yet highly durable motor. Compatible with 6S LiPo batteries, this motor delivers excellent results for both extended flight times and powerful performance.
Key Benefits:
- High performance: Available KV options (1150KV, 1300KV, 1500KV, 1900KV) allow for optimal customization of your drone's performance.
- Premium materials: Al 7075 casing, titanium alloy shaft, and Kawasaki silicon steel stator ensure strength, lightness, and durability.
- Smooth and silent operation: Japanese NMB bearings and N52H arc magnets provide optimal performance and quiet operation at high RPMs.
- Highly compatible: Compatible with 6S LiPo batteries, ensuring excellent results and long flight times.
- Easy installation: M5 prop adapter thread and M3 bolts make it easy to install on your drone.
Specifications:
- Model: BrotherHobby Avenger 3008 Motor
- KV options: 1150KV / 1300KV / 1500KV / 1900KV
- Base casing material: Al 7075
- Stator: 0.2mm Kawasaki silicon steel
- Configuration: 12N14P
- Prop adapter shaft thread: M5
- Shaft: Titanium alloy hollow shaft
- LiPo Cell Count: 6S
- Bolt Pattern: M3 (19x19mm)
- Bearings: Japanese NMB 11x5x5 mm
- Rotor: N52H arc magnets
- Weight: 64g with 25cm SR wires
- Wire Length: 25cm, AWG 18
- Bell Cap: Al 7075
Specifications
| Product Name | BrotherHobby Avenger 3008 Motor |
| KV | 1150KV/1300KV/1500KV/ 1900KV |
| Base casing | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Configuration | 12N14P |
| Prop Adapter Shaft Thread | M5 |
| Shaft | Titanium Alloy hollow shaft |
| No.of Cells(Lipo) | 6S |
| Bolt Pattern | M3 (19mmX19mm) |
| Bearings | Japanese NMB 11*5*5 mm |
| Rotor | N52H arc magnets |
| Weight | 64g with 25cm SR wires |
| Wire AWG | 18AWG 25cm length |
| Bell cap | Al 7075 |
