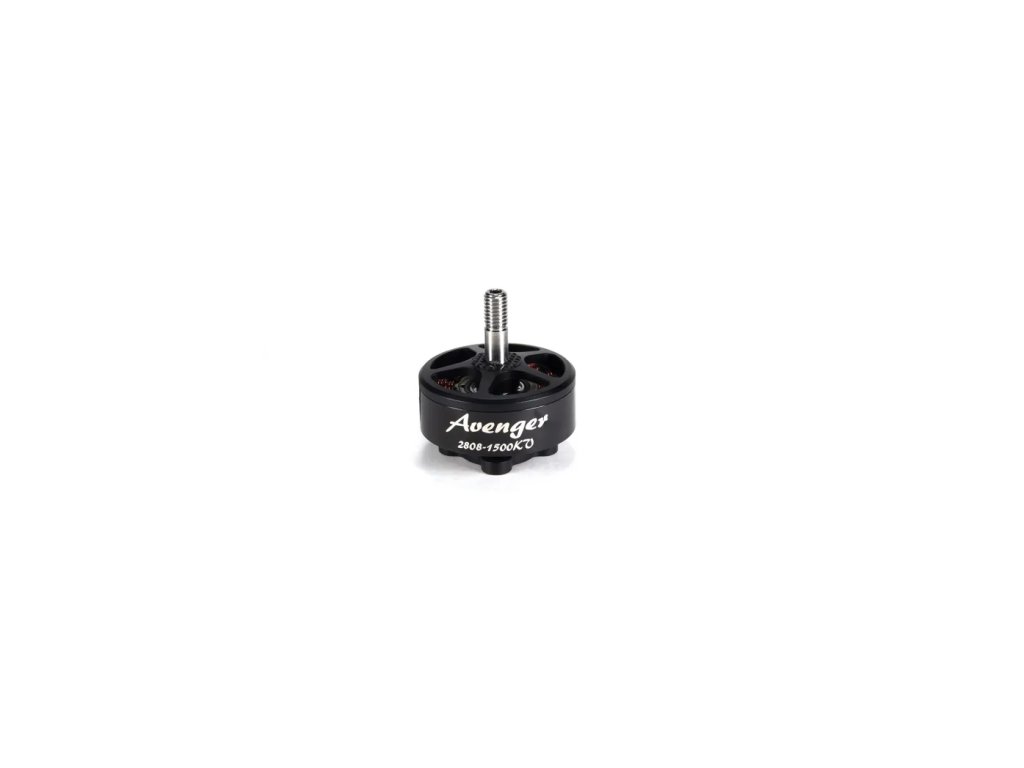

BrotherHobby Avenger 2808 Motor
BrotherHobby Avenger 2808 Motor – Brushless Motor for Drones
Take flight with the BrotherHobby Avenger 2808, a brushless motor engineered for maximum power, reliability, and durability. Ideal for pilots seeking high-quality components for racing or freestyle drones, the Avenger 2808 combines advanced materials such as Al 7075 for the base casing and titanium alloy for the shaft, ensuring exceptional strength, lightweight, and longevity.
With the option of selecting from various KV ratings (1350KV, 1500KV, 1900KV), you can tailor the motor's performance to your needs. Whether it's smooth cruising with extended battery life or fast-paced racing performance, the BrotherHobby Avenger 2808 delivers smooth and efficient flight.
Its Japanese NMB bearings ensure smooth operation at high RPMs, while N52H arc magnets boost motor strength, giving you total control over your drone. The Avenger 2808 is fully compatible with 4-6S LiPo batteries, offering you flexibility in choosing your power setup.
Key Benefits:
- Flexible performance: Choose between KV variants (1350KV, 1500KV, 1900KV) for optimal performance across various flight conditions.
- High durability and lightweight: Al 7075 base casing and titanium alloy shaft provide the perfect balance of strength, lightness, and long-lasting performance.
- Exceptional smoothness: Japanese NMB bearings and N52H arc magnets ensure a quiet, efficient, and stable motor operation at high speeds.
- 4-6S LiPo compatibility: Fully compatible with 4-6S LiPo batteries for optimal power in different flight scenarios.
- Easy installation: M5 prop adapter thread and M3 bolts make motor mounting quick and simple.
Specifications:
- Model: BrotherHobby Avenger 2808 Motor
- KV options: 1350KV / 1500KV / 1900KV
- Base casing material: Al 7075
- Stator: 0.2mm Kawasaki silicon steel
- Configuration: 12N14P
- Prop adapter shaft thread: M5
- Shaft: Titanium alloy hollow shaft
- LiPo Cell Count: 4-6S
- Bolt Pattern: M3 (19x19mm)
- Bearings: Japanese NMB 12x6x4mm
- Rotor: N52H arc magnets
- Weight: 54g with 25cm SR wires
- Wire Length: 25cm, AWG 18
- Bell Cap: Al 7075
Specifications
| Product Name | BrotherHobby Avenger 2808 Motor |
| KV | 1350KV/1500KV/ 1900KV |
| Base casing | Al 7075 |
| Stator | 0.2mm Kawasaki silicon steel |
| Configuration | 12N14P |
| Prop Adapter Shaft Thread | M5 |
| Shaft | Titanium Alloy hollow shaft |
| No.of Cells(Lipo) | 4-6S |
| Bolt Pattern | M3 (19mmX19mm) |
| Bearings | Japanese NMB 12X6X4 |
| Rotor | N52H arc magnets |
| Weight | 54g with 25cm SR wires |
| Wire AWG | 18AWG 25cm length |
| Bell cap | Al 7075 |
