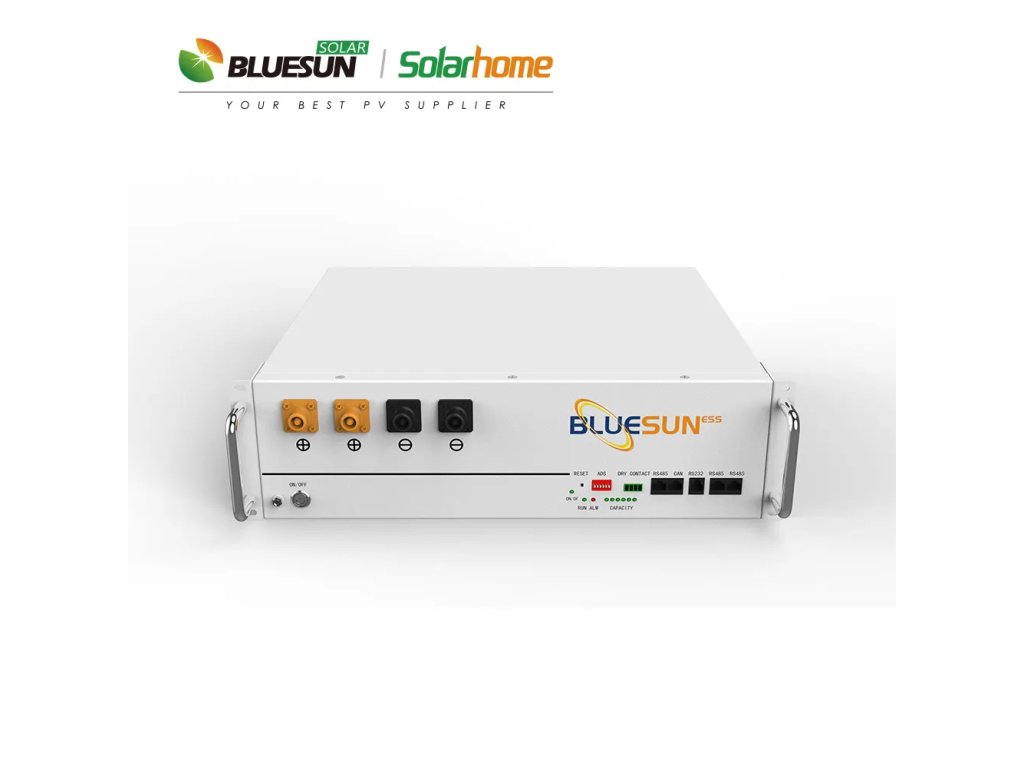

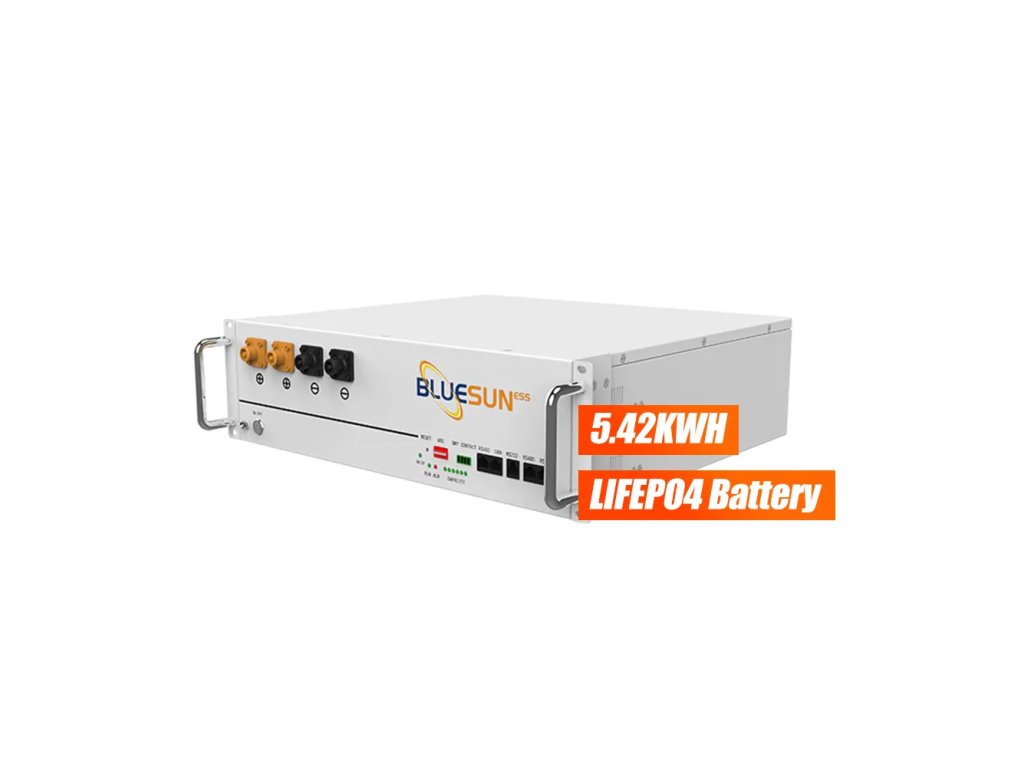

Bluesun BSM48106 Lifepo4 Lithium Battery Storage System
Introducing the Bluesun BSM48106 LiFePO4 Battery, offering an efficient, long-lasting, and safe energy storage solution. With advanced lithium iron phosphate (LiFePO4) technology, you can rely on a dependable and eco-friendly energy source for all your needs. With a capacity of 5.42 kWh and over 6000 charge cycles, it’s the ideal choice for home appliances, boats, and other energy applications. This battery is designed for maximum efficiency and longevity, allowing you to enjoy the benefits of renewable energy for years to come.
Leverage the power and flexibility of the Bluesun BSM48106, which allows you to easily expand capacity and connect multiple modules to meet higher energy demands. This battery also saves you on maintenance costs, is resistant to high temperatures, and features intelligent algorithms for efficient energy management.
Main Benefits:
- High Performance & Long Life: Over 6000 charge cycles at 25°C, with an expected lifespan of over 10 years.
- Top-Notch Safety: The Battery Management System (BMS) protects against over-discharge, overcharge, overcurrent, and abnormal temperatures.
- Low Maintenance: Self-ventilation and low self-discharge extend storage time and reduce maintenance costs.

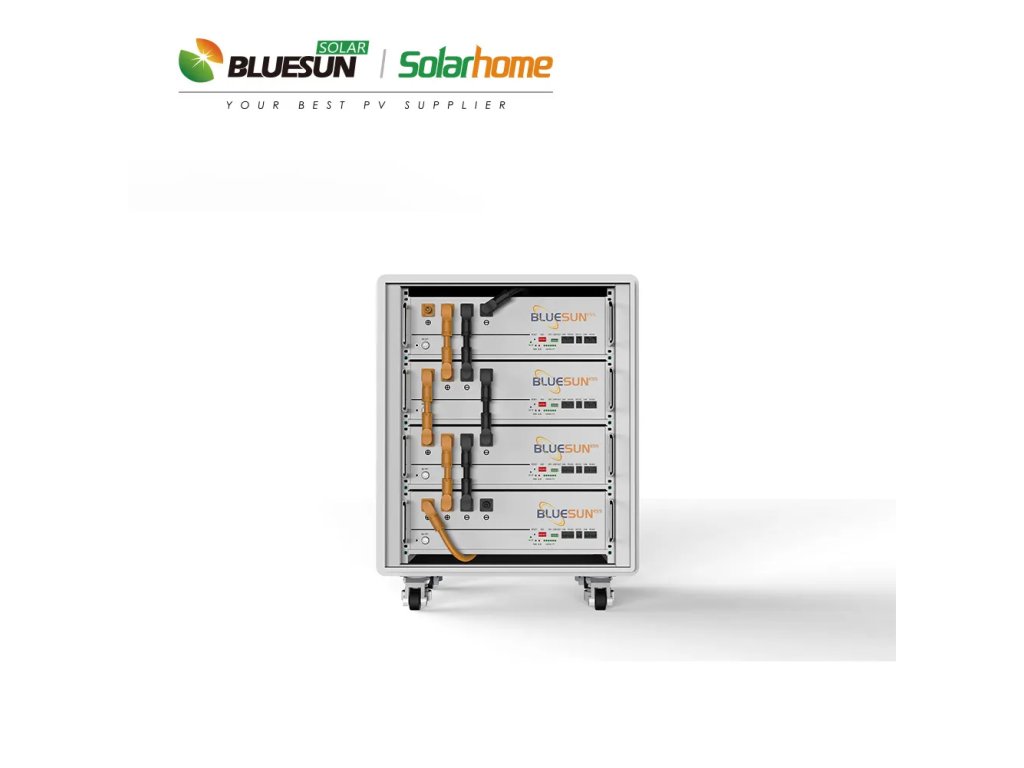

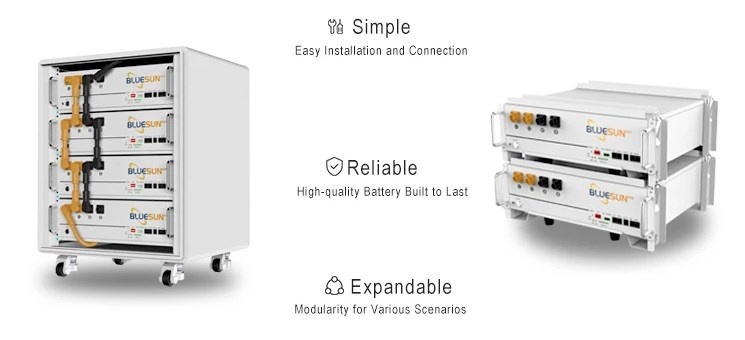

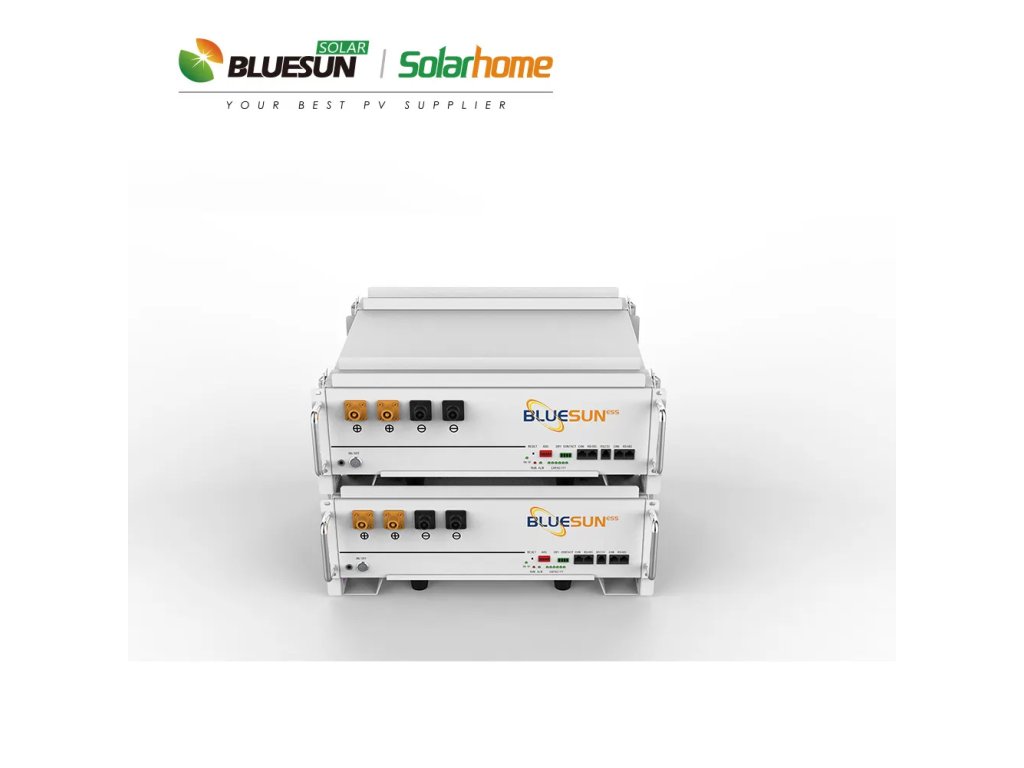

- Flexible Configuration: Multiple modules can be connected in parallel to increase capacity and provide long-term power backup.
- Wide Temperature Range: Performs in temperatures from -20°C to +55°C, ideal for demanding conditions.
- Compact & Lightweight Design: Easy to install and maintain with a standard 19-inch mounting size.
Product Features:
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 51.2 V
- Nominal Capacity: 5427.2 Wh (5.42 kWh)
- Operating Temperature Range: -10°C to 50°C
- Weight: 41.4 kg
- Dimensions: 450 x 451 x 133 mm
- Recommended Charge/Discharge Current: 50A (Maximum 100A)
- Cycle Life: Over 6000 cycles at 25°C
- Communication: CAN/RS-485
- Protection Class: IP22
Item NO.: BSM48106
Battery Type : Lithium Battery
Nominal Capacity : 5.42kwh
Nominal Voltage : 51.2V
Application : Home Appliances, Consumer Electronics, boats etc.
| Model | BSM48106 |
| Battery Type | LiFePO4(LFP) |
| Nominal Voltage(V) | 51.2 |
| Nominal Capacity(WH) | 5427.2 |
| Usable Capacity(WH) | 5427.2 |
| Design Life | 10+ Years （25°C/77F) |
| PHYSICAL | |
| Dimension(mm) | 450*451**133 |
| Weight(kg) | 41.4 |
| ELECTRICAL | |
| Cycle Life | >6000. 25°C |
| Discharge Voltage(V) | 40 |
| Charge Voltage(V) | 58.4 |
| Charge/Discharge Current(A) | 50A (Recommended) 100A(Max ) |
| Internal Resistance | ≤30mΩ |
| BMS | |
| Power Consumption | <2W (Work) < 100mW(Sleep) |
| Monitoring Parameters | System voltage, current, cell voltage, cell temperature, module temperature |
| SOC | Intelligent algorithm |
| Communication | CAN/RS-485 |
| OPERATION | |
| Operating Temperature Range | -10℃ - 50 ℃ |
| Transport or Storage Temperate Range | -20℃ - 60 ℃ |
| Humidity | 15% - 85% (No Condensing) |

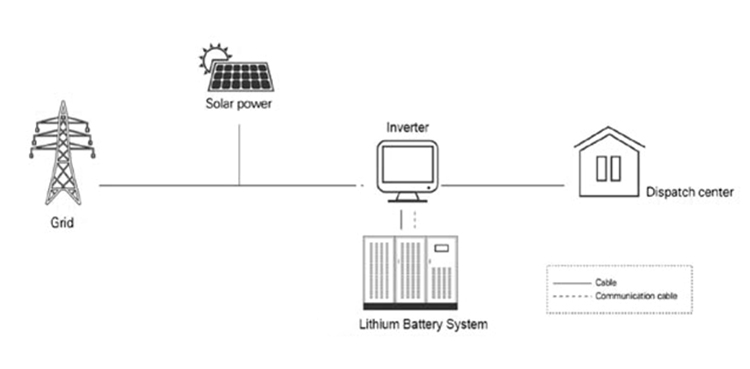

Applications
.jpg)

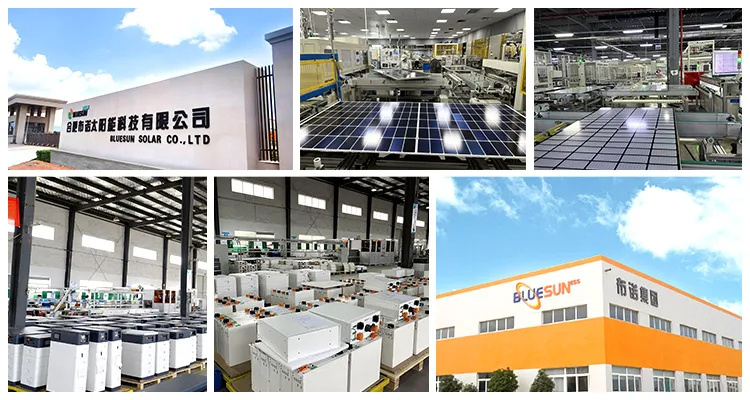

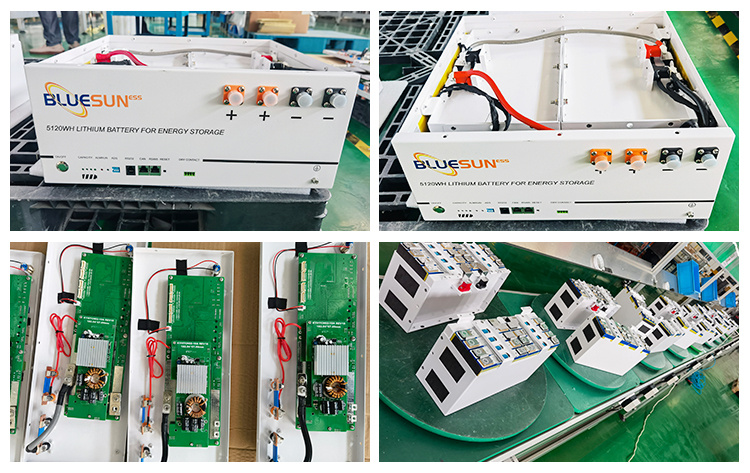

Bluesun Factory
Global Exhibitions
