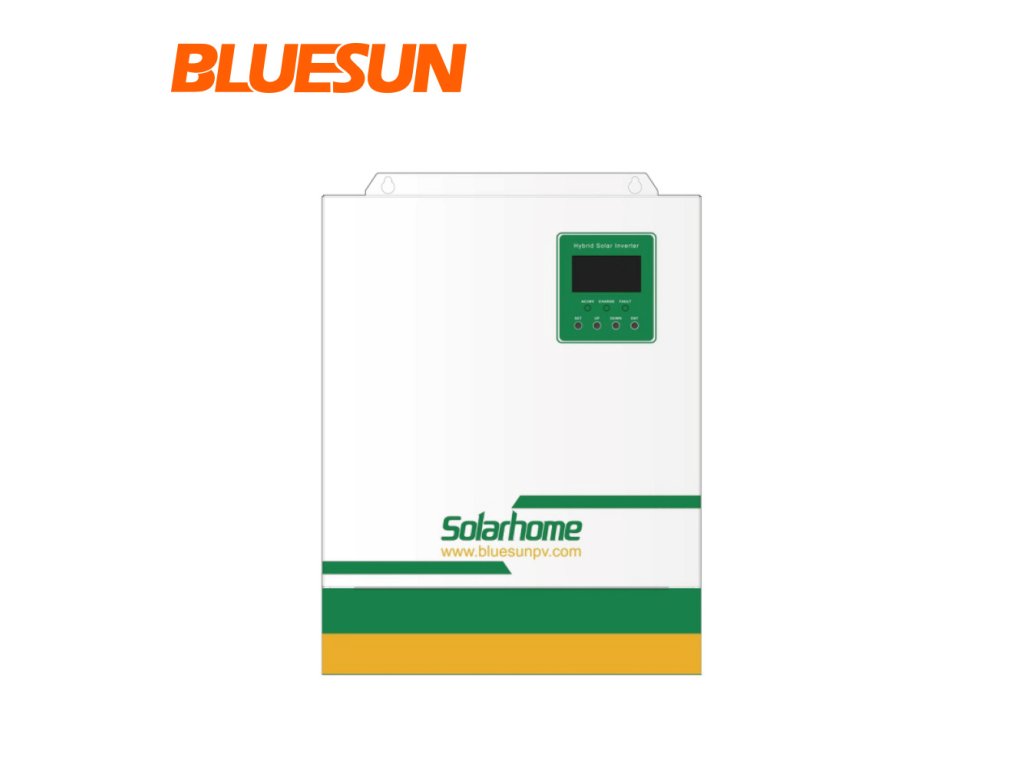

Bluesun BSM-5500BLV-48DA Off Grid Hybrid Inverter Solar Inverter
Bluesun High Efficiency 5.5kW Off-Grid Hybrid Solar Inverter
Your Path to Energy Independence
Discover the future of energy freedom with the Bluesun High Efficiency 5.5kW Off-Grid Hybrid Solar Inverter. This cutting-edge inverter combines a solar charger, battery charger, and inverter into one compact device, ensuring a reliable and uninterrupted power supply – perfect for off-grid applications, homes, cabins, or small businesses. Never rely on the grid again, as this inverter delivers clean, solar-generated power straight to you!
Thanks to the advanced MPPT (Maximum Power Point Tracking) technology and an efficiency of up to 99.9%, the Bluesun inverter ensures maximum utilization of solar energy. With its stable output in the form of a pure sine wave and wide support for various types of batteries (GEL, AGM, LFP), you can control every aspect of your energy system. Whether you need power for a home, a cottage, or backup power, this inverter provides reliable performance even in the most demanding conditions.
Key Benefits:
- Maximum Energy Efficiency: High efficiency of up to 99.9% due to advanced MPPT technology for optimal use of solar energy.
- Flexible Charging and Wide Battery Support: Supports various types of batteries – GEL, AGM, LFP, and others – with selectable charging modes.
- Compact Design and Easy Installation: Integrated inverter, charger, and solar charger in one device with a user-friendly LCD display.
- Pure Sine Wave: Output voltage in the form of a pure sine wave for maximum safety and compatibility with sensitive devices.
- Parallel Connection Option: Up to 6 inverters can be connected in parallel for higher performance and flexibility.
- Convenient Management and Settings: Easy customization of settings via a clear LCD display.
Specifications:
- Model: BSM-5500BLV-48DA
- Type: Off-Grid Solar Inverter
- Maximum Power: 5.5 kW
- Output Voltage: 220/230V AC ±5%
- Certification: CE
- Battery Type: Sealed, Flood, GEL, LFP, Ternary
- Battery Voltage: 48V (starting voltage 44V)
- Maximum Battery Charging Current: 80A
- Maximum Solar Input Power: 6000W
- Solar Input Voltage Range: 120-500V DC
- Number of Parallel Units: Up to 6 inverters
- Output Frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
- Maximum Efficiency: >92%
- Operating Temperature: -10℃ to 55℃
- Dimensions: 426 x 322 x 124 mm
- Weight: 10.5 kg
- AC Grid Charging Efficiency: >95%

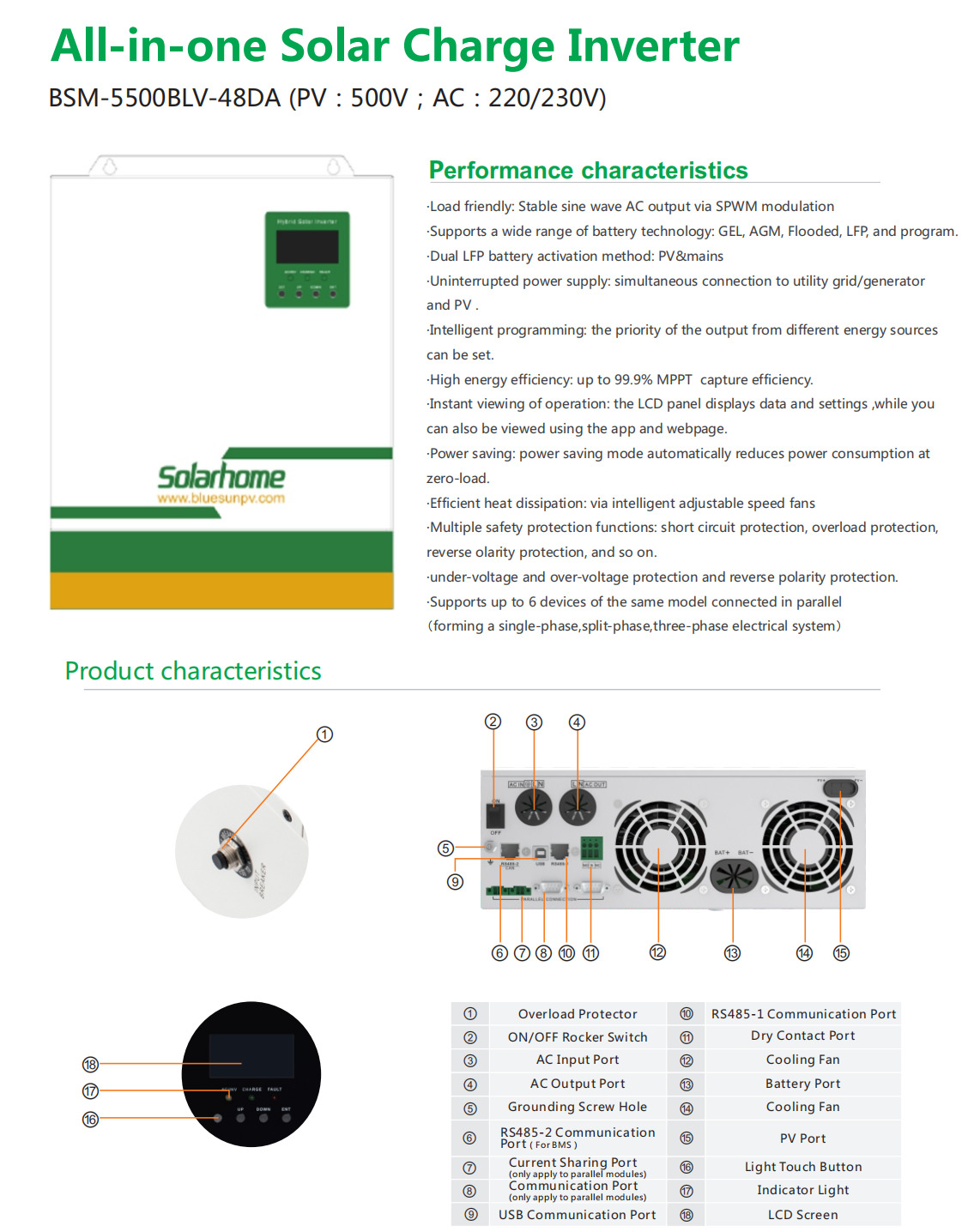

Bluesun BSM-5500BLV-48DA Off Grid Hybrid Inverter Solar Inverter
Item NO.: BSM-5500BLV-48DA
Power : 5500W
Voltage : 220/230VAC±5%
Certificate : CE
Lead time : 7 DAYS
| Model | BSM-5500BLV-48DA |
| BATTERY INPUT | |
| Battery Type | Sealed, Flood, GEL, LFP, Ternary |
| Rated Battery Input Voltage | 48V (Minimum Startup Voltage 44V ) |
| Hybrid Charging Maximum Charging Current | 80A |
| Battery Voltage Range | 40Vdc～60Vdc ±0.6Vdc (Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery…) |
| SOLAR INPUT | |
| Maximum PV Open-circuit Voltage | 500Vdc |
| PV Working Voltage Range | 120-500 Vdc |
| MPPT Voltage Range | 120- 450 Vdc |
| Maximum PV Input Current | 22A |
| Maximum PV Input Power | 6000W |
| Maximum PV Charging Current | 80A |
| AC INPUT (generator/grid) | |
| Mains Maximum Charging Current | 60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | UPS Mains Mode: (170Vac～280Vac)±2%APL Generator Mode: (90Vac～280Vac)±2% |
| Frequency | 50Hz/-60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| Switch Time (bypass and inverter) | 10ms(Typical Value) |
| Maximum Bypass Overload Current | 40 A |
| AC OUTPUT | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage (Vac) | 230Vac |
| Rated Output Power (Va) | 5500W |
| Rated Output Power (W) | 5500W |
| Peak Power | 10000VA |
| On-load Motor Capacity | 4HP |
| Output Frequency Range (Hz) | 50Hz±0.3Hz/ 60Hz±0.3Hz |
| Maximum Efficiency | >92% |
| No-load loss | Non Energy-saving Mode:≤50WEnergy-saving Mode: ≤25W (Manual Setup) |
| GENERAL | |
| Number of parallel/split phases | 1-6 PCS |
| Working Temperature Range | -10℃～55 ℃ |
| Storage Temperature Range | -25℃～60 ℃ |
| Humidity Range | 5% to 95% (Conformal Coating Protection) |
| Dimensions | 426mm*322mm*124mm |
| Weight | 10.5 |
Additional parameters
| Category: | Hybrid Inverters |
|---|---|
| Weight: | 10.5 kg |
Be the first who will post an article to this item!
