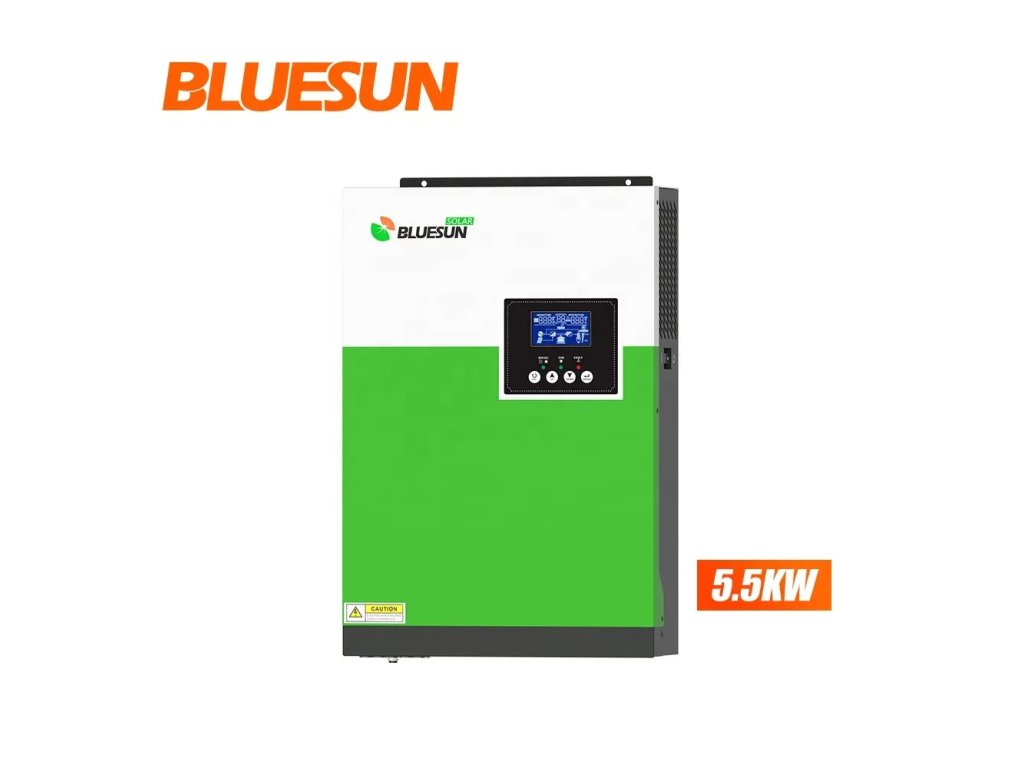

Bluesun BSM-5500BLV-48 Home Use 5.5KW Off Grid Hybrid Inverter 220/230V Solar Inverter Max Parallel to 12 Units
Bluesun BSM-5500BLV-48 Hybrid Solar Inverter 5.5 kW Off-Grid
Your Key to Energy Independence!
Join the renewable energy revolution and gain unlimited access to clean energy with the Bluesun BSM-5500BLV-48 Hybrid Solar Inverter. This 5.5 kW Off-Grid inverter is the perfect solution for homes and small businesses seeking energy independence, even off the public grid. With advanced MPPT technology, high efficiency, and maximum flexibility (up to 12 units in parallel), this inverter ensures stable, safe, and efficient energy supply in any condition.
The Bluesun BSM-5500BLV-48 is designed to handle demanding conditions and provide reliable energy for your home appliances and computers. With pure sine wave output and overload protection, this inverter ensures smooth and safe operation of all devices.
Harness the power of the sun and enjoy full control over your energy consumption! This hybrid solar inverter is ideal for anyone looking for an efficient, eco-friendly, and cost-effective solution for their home or small business.
Main Benefits:
- Maximum flexibility: Parallel connection capability of up to 12 units for greater energy needs.
- High efficiency: Up to 96% efficiency in solar-to-inverter conversion and 93% efficiency in battery-to-inverter use.
- Safety features: Overload protection, overcharge protection, and overvoltage protection for maximum safety.
- Pure sine wave output: Compatibility with sensitive devices like computers.
- Solar & AC charging: Dual charging capabilities from solar energy and AC power for added convenience.
- Easy installation: Compact size and low weight (10 kg) for fast and simple setup.
- Wide voltage tolerance: Flexible input voltage range (90V to 280V) for various devices.
Specifications:
- Model: BSM-5500BLV-48
- Power Capacity: 5.5 kW (5.5 kVA)
- Voltage: 220/230V AC (±5 %)
- Max Parallel Connection: Up to 12 units
- Frequency: 50/60 Hz (Auto sensing)
- Input Voltage: 170-280V (for PCs); 90-280V (for appliances)
- Output Voltage: 220/230V AC ±5 %
- Surge Power: 11,000 VA
- Output Waveform: Pure sine wave
- MPPT Solar Charger: Max PV power 5500 W
- Max Open Circuit Voltage: 500V DC
- Battery Voltage: 48V DC
- Max Charge Current: 100A (solar charging), 60A (AC charging)
- Efficiency (PV to Inverter): 96 %
- Efficiency (Battery to Inverter): 93 %
- Operating Temperature: -10°C to 50°C
- Dimensions: 482 x 290 x 113 mm
- Weight: 10 kg
- Certification: CE
| MODEL | BSM-5500BLV-48 |
| CAPACITY | 5.5KVA/5.5KW |
| Parallel Capability | Yes,Max to 12 Units |
| INPUT | |
| Nominal Voltage | 220VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer)；90-280VAC(For Home Appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220/230VAC±5% |
| Surge Power | 11000VA |
| Frequency | 50/60 Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer)；20ms(For Home Appliances) |
| Peak Efficiency (PV to INV) | 96% |
| Peak Efficiency (Battery to INV) | 93% |
| Overload Protection | 5s@>=15C% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6-1 (inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC/CV |
| Solar Charger& AC Charger | |
| Solar Charger Type | MPPT |
| Max.PV Array Power | 5500W |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 120VDC-450VDC |
| Max. Solar Input Current | 18A |
| Max. Solar Charge Current | 100A |
| Max. AC Charge Current | 60A |
| Max. Charge Current | 100A |
| PHYSICAL | |
| Dimensions, D x W x H(mm) | 482x290x113 |
| Package Dimension^ D x W x H(mm) | 565x380x190 |
| Net Weight (Kgs) | 10 |
| Communication Interface | USB/RS23 Dry~contact |
| ENVIRONMENT | |
| Operating Temperature Range | -10°C to 50°C |
| Storage temperature | -150 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Packing Details
Program
Additional parameters
| Category: | Hybrid Inverters |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
