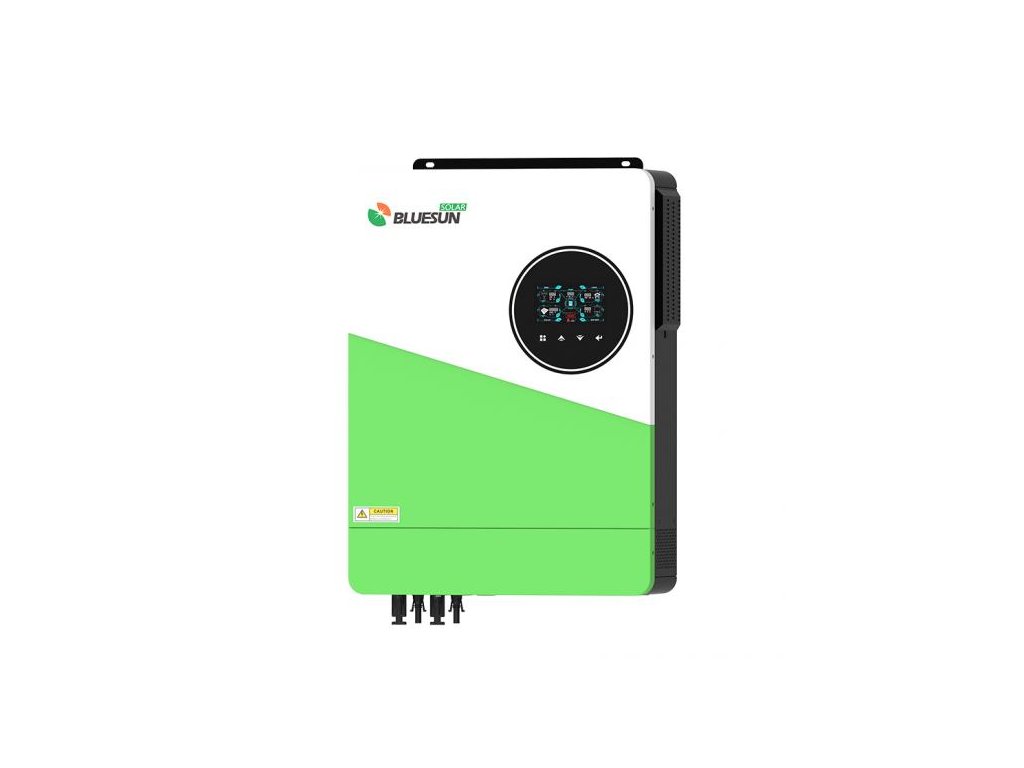

Bluesun BSM-10200LV-48 – 10kW Off-Grid Solar Inverter with Pure Sine Wave
High-Frequency Multifunctional Inverter for Off-Grid and Hybrid Systems
The Bluesun BSM-10200LV-48 is a powerful 10kW off-grid solar inverter that combines inverter, solar MPPT charger, and AC battery charger in a compact, efficient unit. It is ideal for residential use, cabins, or off-grid systems where stable and flexible power delivery is essential.
The inverter features an intuitive LCD display that allows users to configure parameters such as battery charge current, solar/AC source priority, and input voltage range to suit different applications. It supports wide PV input voltage, dual MPPT tracking, and provides surge power up to 20.4 kW.
Key Features:
• Rated Power: 10 kW (Surge Power: 20.4 kW)
• Pure sine wave output – suitable for sensitive electronics
• Built-in MPPT solar charger (dual input)
• High solar charging current – up to 160 A
• AC charging current – up to 140 A
• User-selectable charging source priority (solar or AC)
• Compatible with 48V battery systems (LiFePO₄ and lead-acid)
• Efficiency DC to AC: 94%
• User-friendly LCD display
• Compact size: 530 × 420 × 160 mm, Weight: 14.8 kg
Technical Specifications:
• Model: BSM-10200LV-48
• Phase: Single-phase
• Max PV Input Power: 10,200 W
• Max PV Voltage: 500 VDC
• MPPT Voltage Range: 90–450 VDC
• MPPT Inputs / Max Input Current: 2 / 18 A
• AC Input Voltage Range: 90–280 VAC (Start: 120–140 VAC / Restart: 180 VAC)
• AC Frequency: 50/60 Hz
• AC Output Voltage: 195.5–253 VAC
• Battery Voltage: 48 VDC
• Max Solar Charging Current: 160 A
• Max AC Charging Current: 140 A
• DC to AC Conversion Efficiency: 94%
• Dimensions: 530 × 420 × 160 mm
• Net Weight: 14.8 kg
• Warranty: 5 years
• Certification: CE
The Bluesun BSM-10200LV-48 is a reliable and scalable solution for those seeking energy independence with a focus on efficiency, flexibility, and pure sine wave power output.
Additional parameters
| Category: | Solar Inverters and Batteries |
|---|---|
| Warranty: | 2 years |
| Weight: | 14.8 kg |
