Anern LiFePO4 Lithium Battery Pack 25.6v

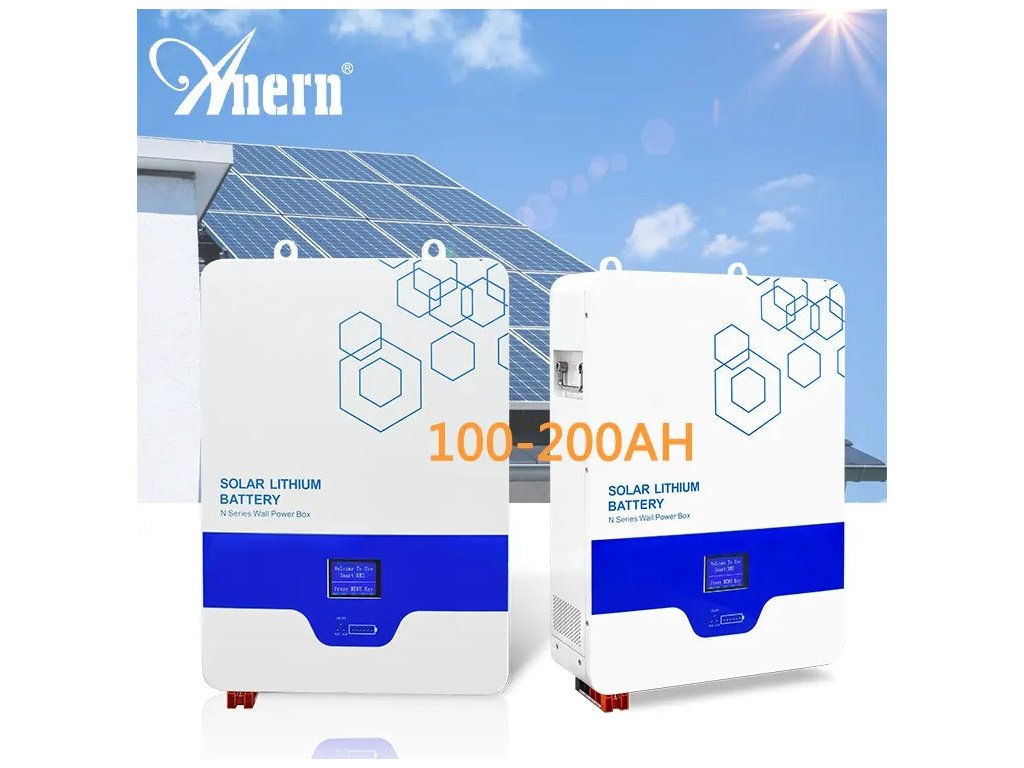

25.6V Wall-Mounted LiFePO4 Lithium-Ion Battery from Anern 100Ah 200Ah – A Reliable Energy Storage Solution for Your Solar System
Bring unlimited energy into your home or business with the 25.6V LiFePO4 Lithium-Ion Battery from Anern, available in 100Ah and 200Ah capacities. This highly efficient, long-lasting, and safe battery is designed for maximum performance and easy integration into your solar systems. With capacities of 100Ah and 200Ah, this battery will provide power for all your needs – whether it’s for your home, cottage, or small business.
Thanks to the advanced energy management system and modular design, the battery easily adapts to your specific requirements. High performance, long lifespan, and the ability to connect multiple units in parallel make this battery an ideal choice for anyone looking for a reliable and efficient energy storage solution. Whether you want to reduce energy costs or become energy independent, this battery provides a stable and secure solution for long-term operation.
Main Benefits:
- Long Lifespan: Lasts more than 8 years with regular use, saving your investment in the solar system.
- Modular Design: Small size and low weight make installation easy and allow flexibility in expanding capacity.
- Easy Installation and Maintenance: With front control and simple wiring, installation and maintenance are quick and hassle-free.
- High Performance: Supports high-current charging and discharging, ensuring maximum efficiency during long-term operation.
- Compatibility: Seamlessly integrates with our inverters and offers extensive support for various communications (RS485, RS232, CAN).
- Safety First: With certifications including CE, ROHS, UN38.3, and MSDS, you can be confident that you are using a top-quality product.
Product Specifications:
- Voltage: 25.6V
- Capacity: 100Ah / 200Ah
- Long Lifespan: Over 8 years with regular use
- Modular Design: Easy installation and expandability
- Supports High-Current Charging and Discharging: Fast and efficient operation
- Communication: RS485, RS232, CAN
- Compatibility: 100% compatible with our inverters for easy integration
- Safety Certifications: CE, ROHS, UN38.3, MSDS
- Simple Control: One key to power on and convenient control
- Dimensions and Weight: Compact and lightweight design for easy installation
1. Model: LPB-N-24100 – 25.6V, 100Ah
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Capacity: 100Ah
- Voltage: 25.6V
- Energy Storage: 2.56 kWh
- Voltage Working Range: 22.4V – 29.2V
- Max. Charge Current: 100A
- Max. Discharge Current: 100A
- Working Temperature:
- Charging: 0°C to +55°C
- Discharging: -20°C to +60°C
- Storage Temperature: -20°C to +40°C
- SOC Accuracy: <8%
- Dimensions: 520 x 370 x 210 mm
- Weight: 28 kg
- Protection: IP54 (Water and dust resistance)
- Cooling: Natural cooling
- Communication: RS232, RS485, CAN
- Certifications: CE, ROHS, UN38.3, MSDS
2. Model: LPB-N-24200 – 25.6V, 200Ah
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Capacity: 200Ah
- Voltage: 25.6V
- Energy Storage: 5.12 kWh
- Voltage Working Range: 22.4V – 29.2V
- Max. Charge Current: 150A
- Max. Discharge Current: 150A
- Working Temperature:
- Charging: 0°C to +55°C
- Discharging: -20°C to +60°C
- Storage Temperature: -20°C to +40°C
- SOC Accuracy: <8%
- Dimensions: 485 x 475 x 180 mm
- Weight: 45 kg
- Protection: IP54 (Water and dust resistance)
- Cooling: Natural cooling
- Communication: RS232, RS485, CAN
- Certifications: CE, ROHS, UN38.3, MSDS
Package Includes:
- 1 x Unit
- 1 x Mounting Bracket
- 1 x Bag with Screws
- 1 x User Manual
Ensure safe and efficient solar energy storage with the 25.6V LiFePO4 Lithium-Ion Battery from Anern, available in 100Ah and 200Ah. Invest in a high-quality, long-lasting energy solution that adapts to your needs and helps you save on energy costs.
Key Features of Anern LiFePO4 Lithium Battery Pack 25.6v

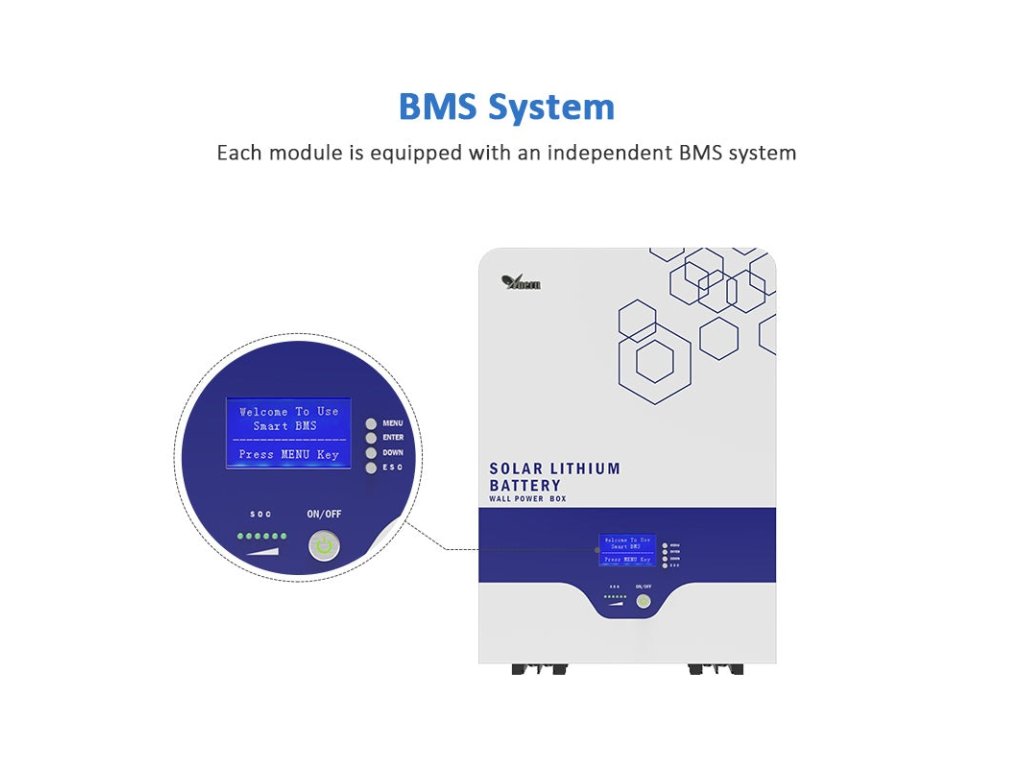

- Each module is equipped with an independent BMS system.
- Safe lithium iron phosphate battery cell.
- Longer cycle life>6000 cycles, 20 years design life.
- Standard design with helpful pulling ear quick stacking.
Specification of Anern LiFePO4 Lithium Battery Pack 25.6v
| Model | AN-LPB-N-24100 | AN-LPB-N-24200 |
| Battery Type | LiFePO4 | |
| Typical Capacity(AH) | 100AH | 200AH |
| Typical Voltage(V) | 25.6V | 25.6V |
| Energy storage(Kwh) | 2.56Kwh | 5.12Kwh |
| Voltage Working Range(V) | 22.4-29.2V | 22.4-29.2V |
| Working Temperature(°C) | Charge: 0-+55°C Discharge: -20-+60°C |
|
| Storage Temperature(°C) | -20-+40°C | |
| Standard Charge Current(A) | 0.5C | |
| Max. Charge Current(A) | 100A | 100A |
| Max. Discharge Current(A) | 100A | 100A |
| SOC Accuracy | <8% | |
| Dimension(mm) | 410*370*160mm | 570*410*160mm |
| Weight(kg) | 28kg | 45kg |
| IP Grade | IP54 | |
| Cooling | Nature | |
| Communication | RS232, RS485, CAN | |
| Certifications | CE, ROHS, UN38.3, MSDS | |
Application of 25.6v 51.2V 100AH 200AH 280AH Wall-Mounted Solar LiFePo4 Lithium Ion Battery Energy Storage Battery
Anern wall-mounted batteries have been specifically designed for true deep cycle, long service life capability in adverse temperatures and handling conditions. As part of your off grid solar energy system- energy storage to power all electrical loads for residences, businesses, villages, and remote operations.
Additional parameters
| Category: | Energy Storage System |
|---|---|
| Warranty: | 2 years |
| ? Napětí baterie: | 24V |
